Monolithic Reinforced Concrete Slab and Reinforcement

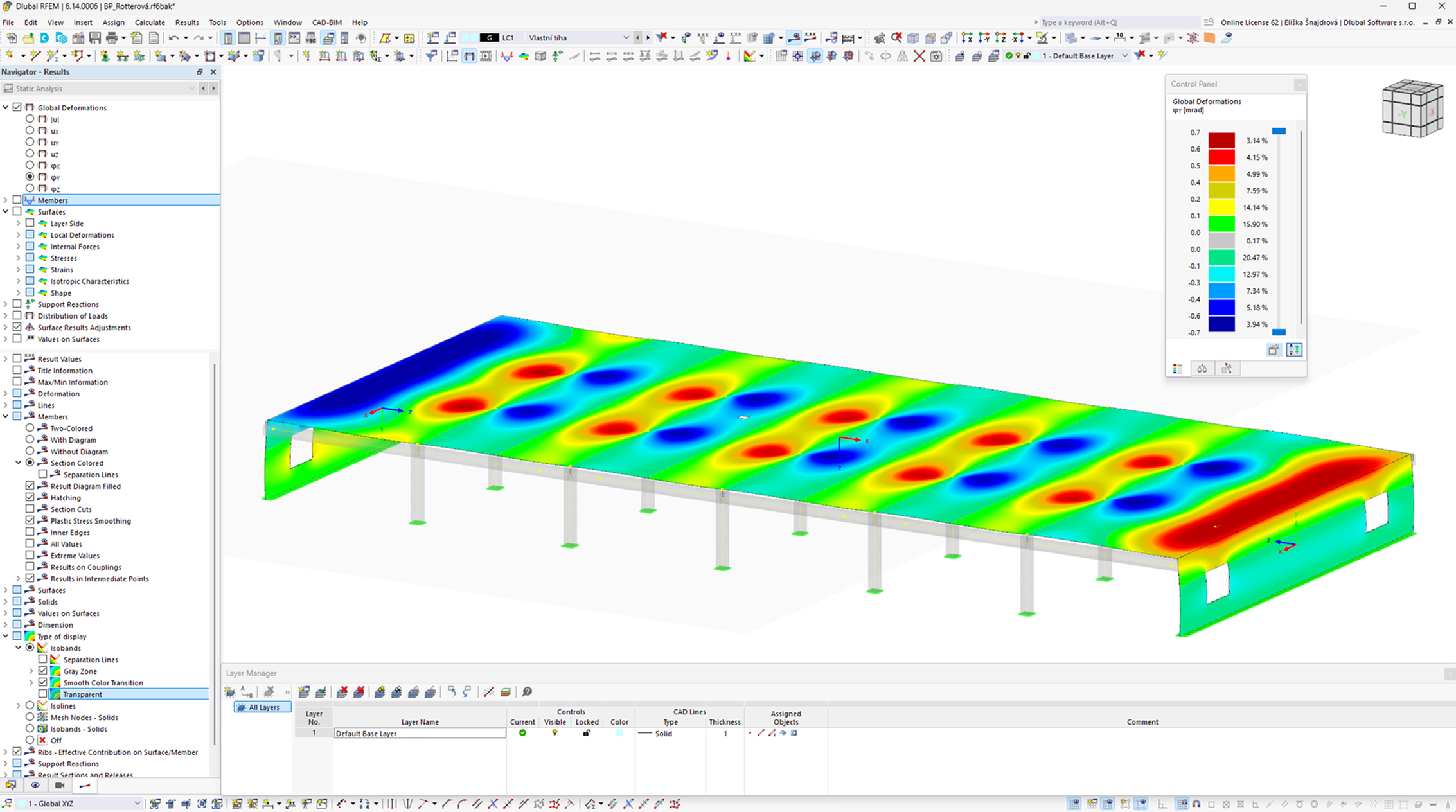

3D model of a monolithic reinforced concrete slab with punching shear calculation and reinforcement optimization according to RFEM 6.
The model of a monolithic reinforced concrete slab designed in RFEM 6 presents a slab with dimensions of 46.8 × 20.7 m and a thickness of 280 mm, supported by square columns and including one drilling. The structural analysis includes punching shear calculations using surfaces, members, and shear dowels. The results optimize the reinforcement compared to manual calculation. The model was created by Michaela Rotterová as part of her Bachelor thesis, which was entered into the Dlubal Talent ČVUT competition.
