Strap Beam Footing Design Visualization

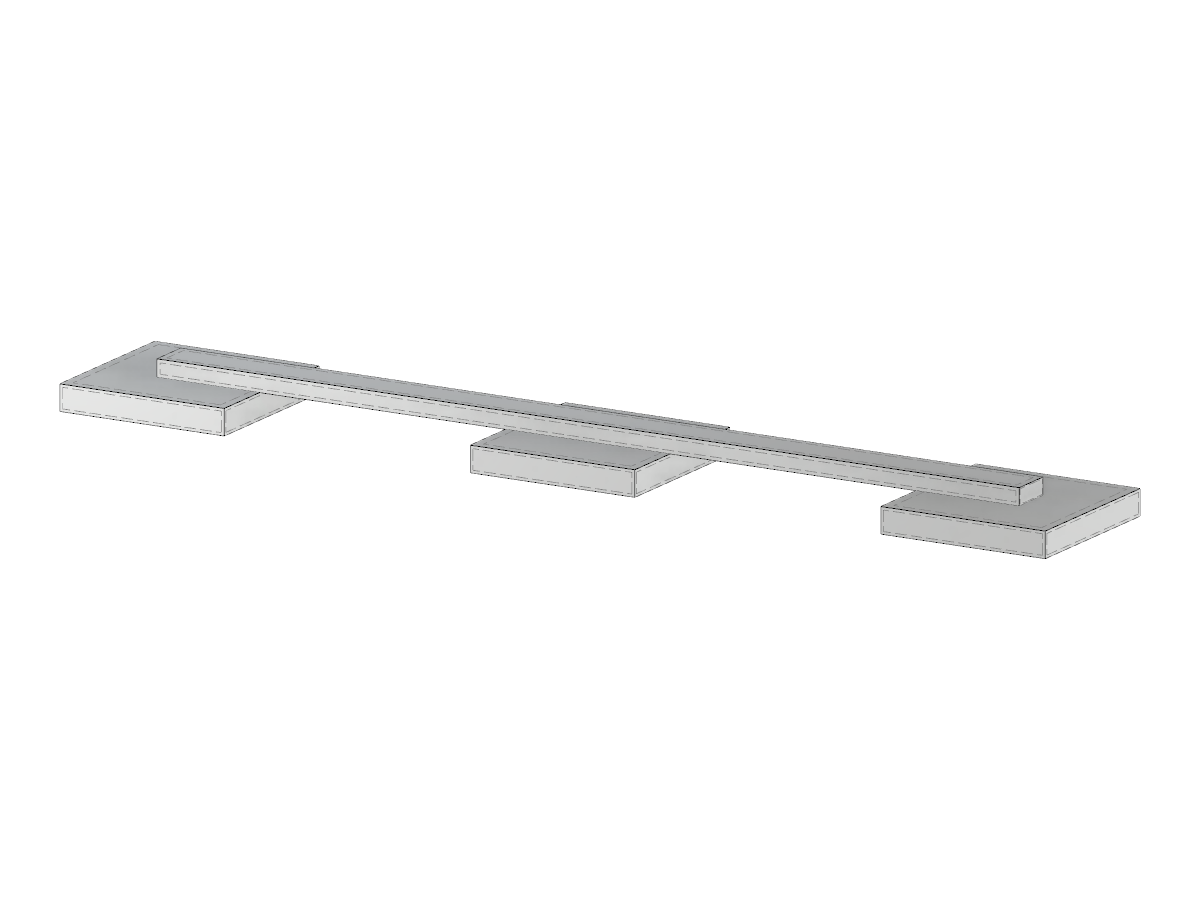

3D visualization of a structural model demonstrating a strap beam combined footing foundation in a concrete structure.
The image illustrates a three-dimensional view of a structural model focusing on a strap beam combined footing foundation. It highlights the integration of footings connected by a strap beam in a concrete structure, depicting conceptual design and layout. This visualization aids in understanding the load distribution and structural support provided by the combined footing.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 32 |
| Number of Lines | 48 |
| Number of Members | 0 |
| Number of Surfaces | 24 |
| Number of Solids | 4 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 11.625 tons |
| Dimensions (Metric) | 12.000 x 0.500 x 2.000 m |
| Dimensions (Imperial) | 39.37 x 1.64 x 6.56 feet |
