Curved Two-Layered Space Trusses for Wide-Span Roofs
Detailed view of a curved two-layered space truss with a semi-octahedral foundation, designed for wide-span roof structures.

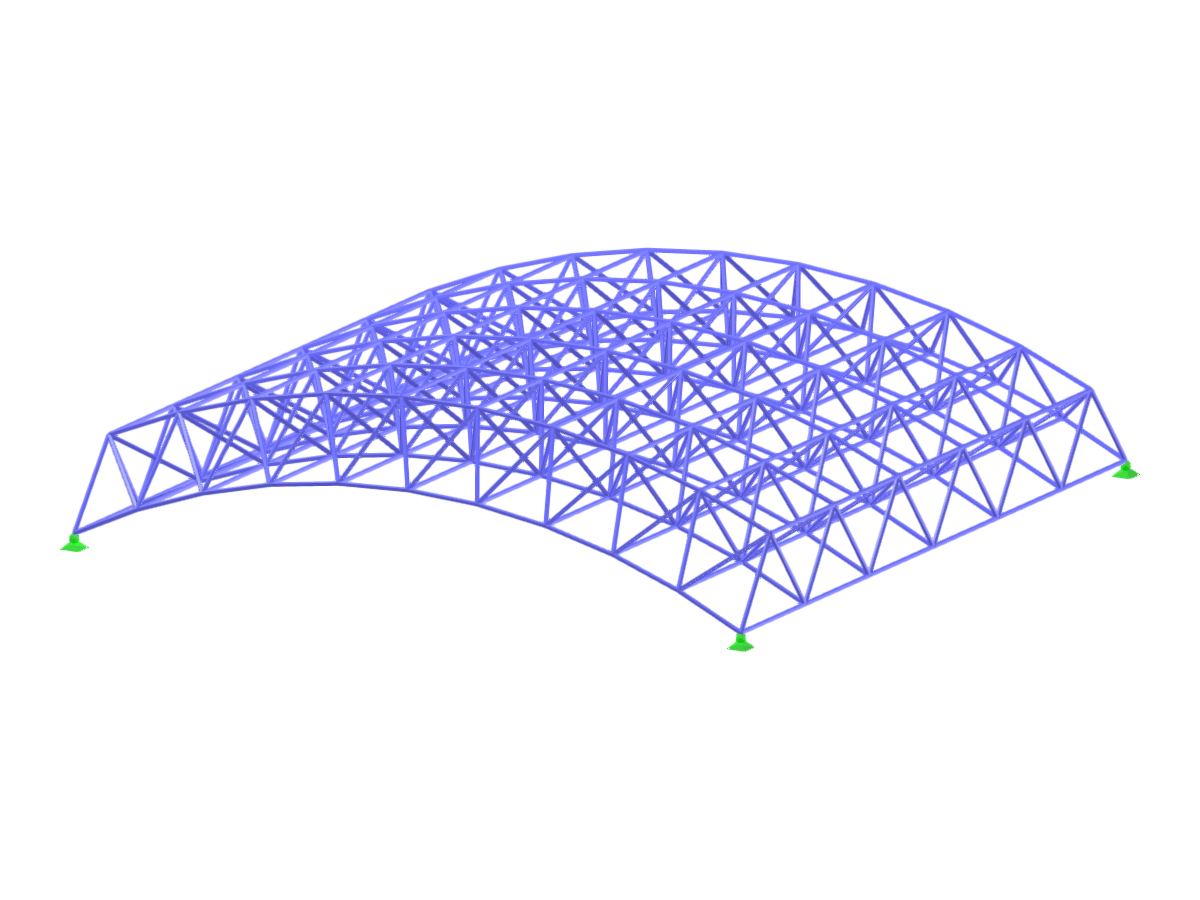

The image shows a detailed design of a curved two-layered space truss, intended for wide-span roof enclosures. The structure is based on a semi-octahedral configuration, offering both strength and aesthetic appeal. This architectural form is suitable for large roofs, providing efficient use of materials and a modern design approach. The circular cylindrical shape enhances the spatial experience under the roof.
Used in
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 137 |
| Number of Lines | 480 |
| Number of Members | 480 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.438 tons |
| Dimensions (Metric) | 12.000 x 2.683 x 12.000 m |
| Dimensions (Imperial) | 39.37 x 8.8 x 39.37 feet |
