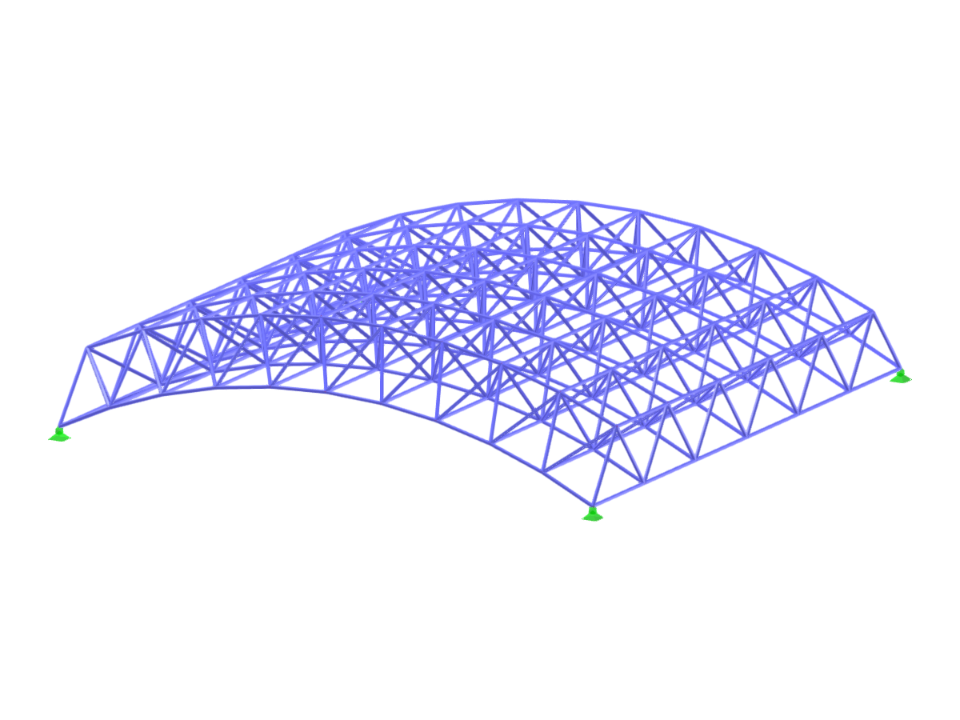

This model features a space truss designed for wide-span roof enclosures, utilizing a curved, two-layered configuration. The structural form is based on a semi-octahedral arrangement, adapting to a circular cylindrical shape to enhance stability and load distribution. Such systems are ideal for creating large, unobstructed interior spaces while maintaining architectural elegance and efficiency.
Space Truss Roof Structure
| Block parameters editable dynamically | |
| Number of Nodes | 137 |
| Number of Lines | 480 |
| Number of Members | 480 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 4.438 tons |
| Dimensions (Metric) | 12.000 x 2.683 x 12.000 m |
| Dimensions (Imperial) | 39.37 x 8.8 x 39.37 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
