KB 2071 | Strain Diagram over Time

KB 2071 | Strain diagram over time

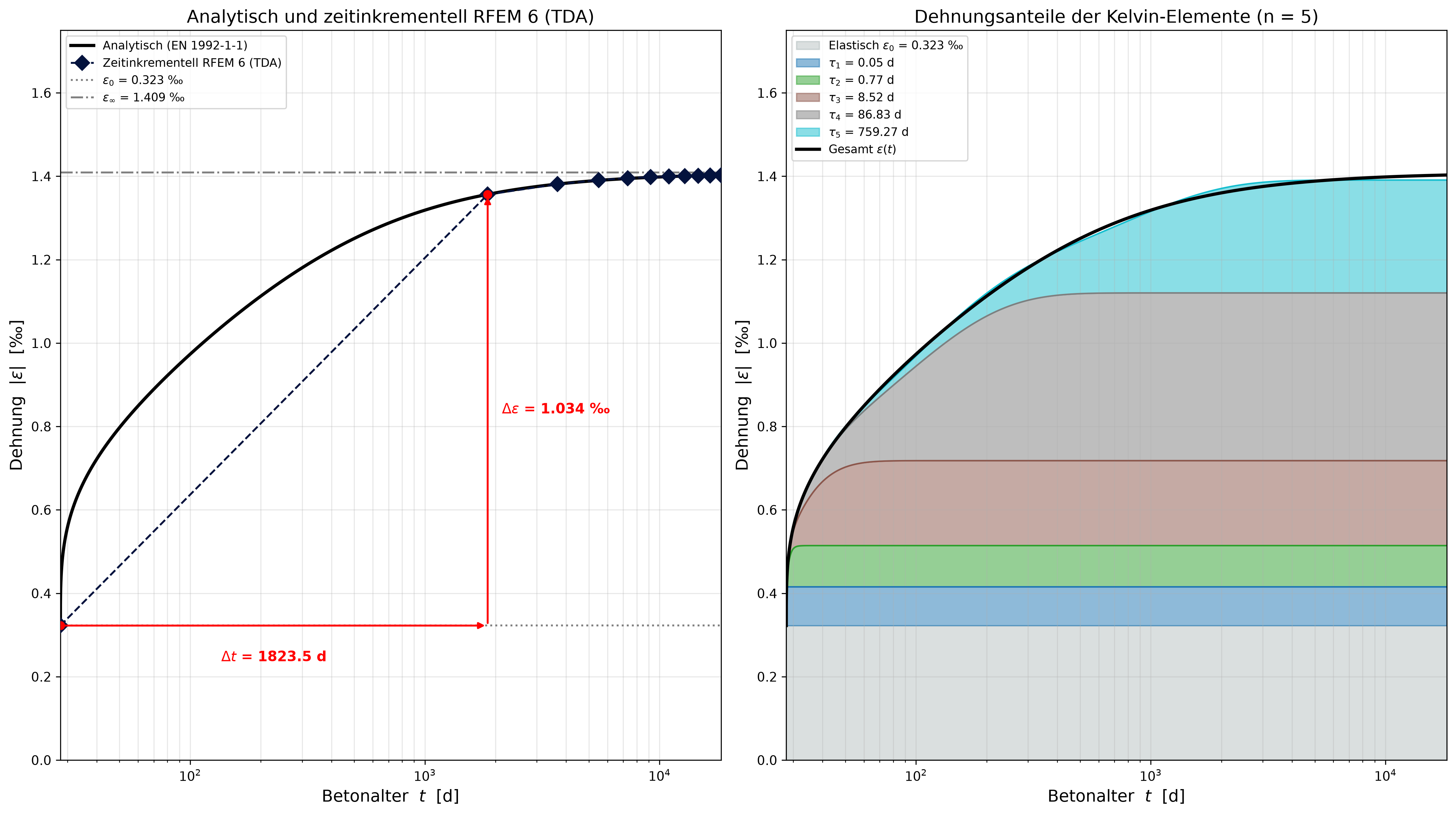

The diagrams show the strain as a function of time or concrete age. The left side shows a comparison of the time-incremental calculation in RFEM 6 with the analytical strain diagram. The strain and time increment for the first time step are also marked here. The right side shows the individual contributions to the total strain for a Kelvin chain with 5 elements.
