Shear Wall Design Check UL7100 per NDS 2024

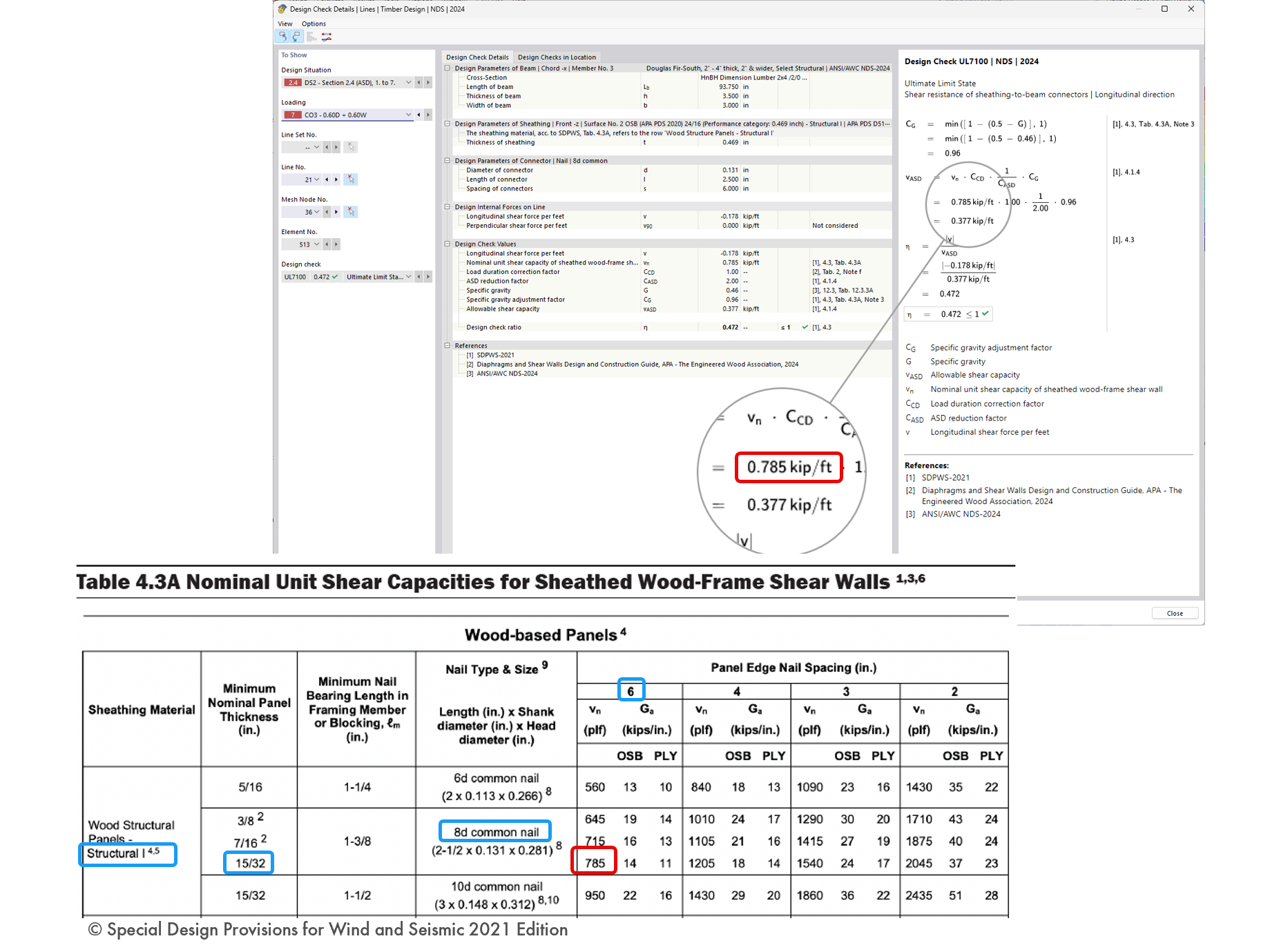

Design check details in Timber Design showing shear resistance of sheathing-to-beam connectors for wood-frame shear wall per NDS 2024 with Table 4.3A nominal unit shear capacities.

The Design Check Details window of the Timber Design add-on displays design check UL7100 for the shear resistance of sheathing-to-beam connectors in the longitudinal direction, calculated according to NDS 2024 and SDPWS 2021.
