Deformation of Facade Supporting Structure Under Wind Loads in RFEM
Deformation analysis of the facade support structure under wind loads in RFEM

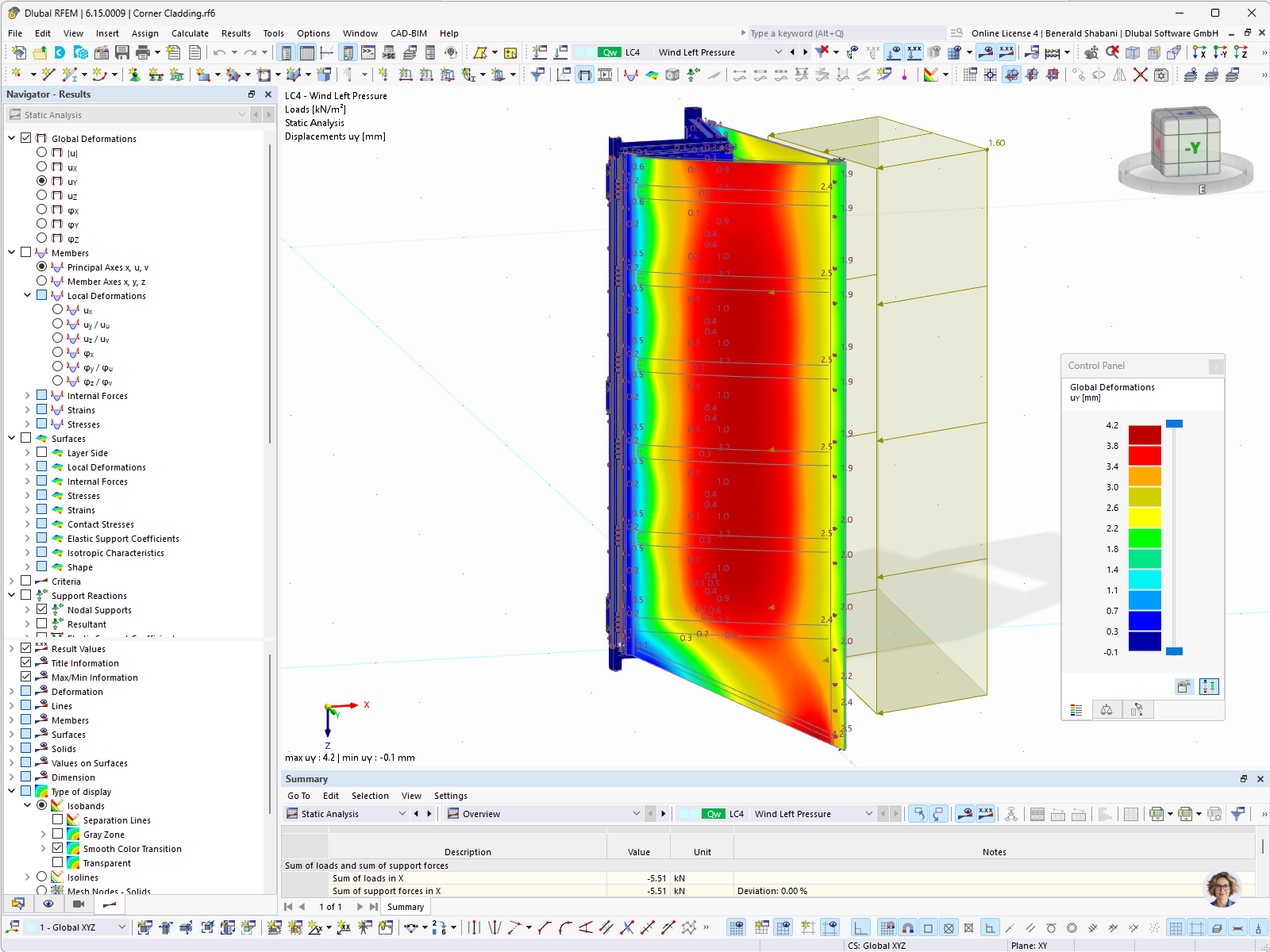

Display of the deformations of a facade support structure under wind loads in RFEM. The color-coded result display shows the distribution of displacements across the facade surface, revealing different deformation zones. The maximum displayed displacement is 4.2 mm. © Eshet Clario
Used in
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 2137 |
| Number of Lines | 1909 |
| Number of Members | 460 |
| Number of Surfaces | 495 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 27 |
| Number of Result Combinations | 0 |
| Total Weight | 0.232 t |
| Dimensions (Metric) | 1.219 x 3.463 x 1.281 m |
| Dimensions (Imperial) | 4 x 11.36 x 4.2 feet |
