  • Variable cross section

    Hi, Im trying to modelate some variable cross section columns, but I want the modeled in this pic instead of the "symetric" one that Dlubal creates when you put a different section at ini/end.

    Thanks

  • #2
    Hello.

    The cross section type at the beginning and at the end must be the same. I think that's your problem.

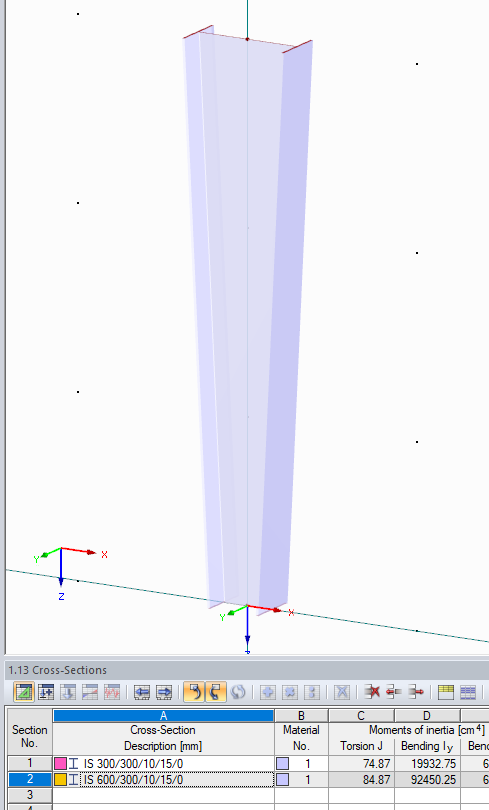

    Klicke auf die Grafik für eine vergrößerte Ansicht

Name: 5110.png
Ansichten: 34
Größe: 31,1 KB
ID: 2947

    I have attached the sample file.

    Frank Faulstich
    Support Team der
    Dlubal Software GmbH
    info@dlubal.com
    https://www.dlubal.com

    Kommentar


    • #3
      Hi Frank, thank for your response.
      I refer that one face of the column must be completely vertical.
      Once at home I will attach an example.
      ​​​

      Kommentar


      • #4
        Hi again!

        As I said, I have an example of what Im looking for (Revit picture), instead of what I have (RFEM picture).

        Tried with eccentricity but the results wasnt good.

        Any ideas?

        Thanks

        Kommentar


        • #5
          Hello. The easiest way is to move the top node a bit to the right.

          Frank Faulstich
          Support Team der
          Dlubal Software GmbH
          info@dlubal.com
          https://www.dlubal.com

          Kommentar


          • #6
            Okey, thanks for the solution

            Greetings

            Kommentar
