    I have a strange bug in RFEM 5.23.01.
    For beams that only have temperature loads, and of wich at least one loadcase includes a trapezoidal temperature load, the strains of the first node are shown incorrect (usually as 0)

    Steps to reproduce:
    Create a new model in 3D.
    Draw a new single member. make it a EN - IPE80 steel beam, make 1 node a rigid support.
    Add one loadcase, disable selfweight. Give it a member load: Temperature, uniform Tc = +10 degC
    Calculate.
    Now look at table 4.8: Member strains.

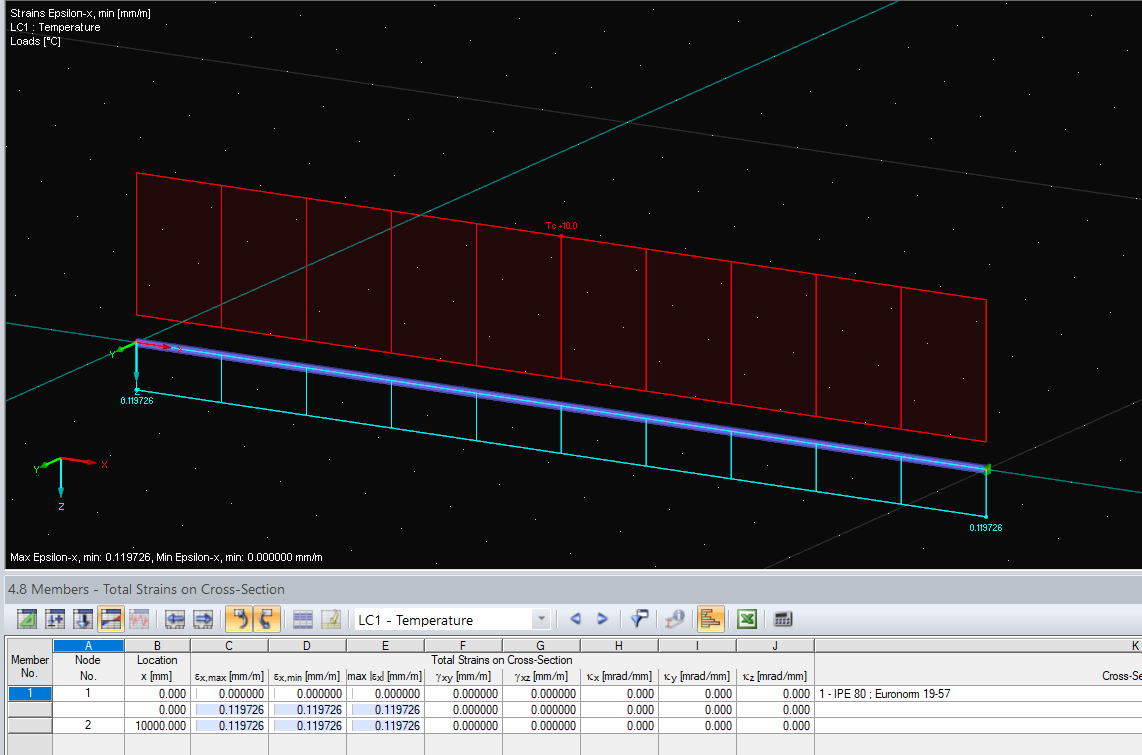

    For member 1, Both node 1 and node2 show a strain (ex,max and ex,min) of approx 0.12 mm/m. This is correct. See picture 1.


    Now add a second loadcase. (don't touch the first one!)
    In the second loadcase, assign a member load: Temperature, trapezoidal Tc1=+10, Tc2=+9
    Calculate.
    Now look at table 4.8: Member strains for the first loadcase
    For member 1, node1 now has a strain (ex,max and ex,min)of 0. This is obviously incorrect. See picture 2.

    In the result diagram it is clear that node 1 has 2 strains at the same point. 0 and 0.12mm/m. See picture 3


    While this may not hurt the global results, if you export table 4.8 to excel and use those values, it results in big errors.
