How to display the deformation graph in the calculation results?

[alexsd]

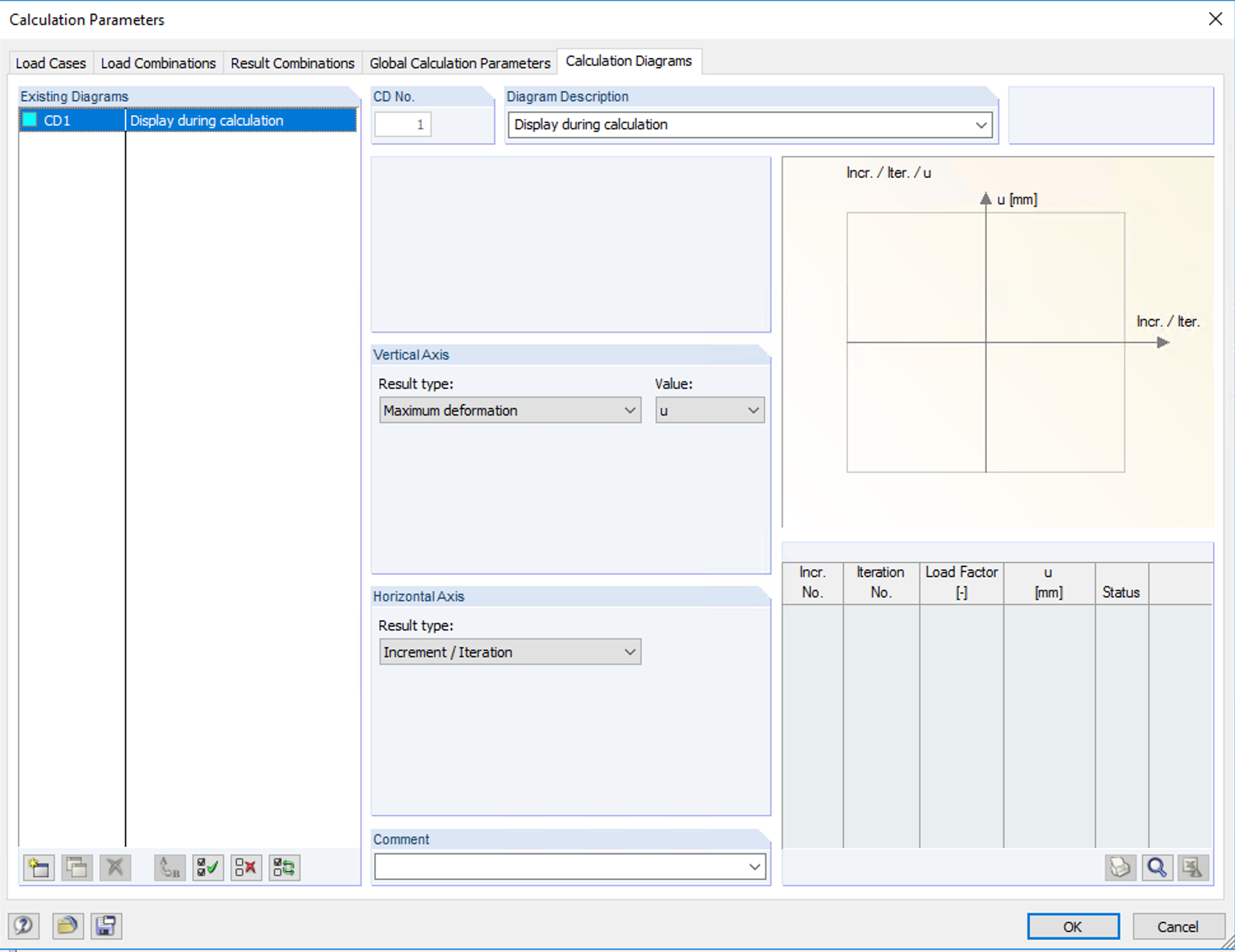

I am performing a nonlinear calculation. In this case, a deformation graph appears in the calculation process window for a few seconds, see attachment. How can I obtain the specified graph after calculation as a calculation result?

[Frank Faulstich]

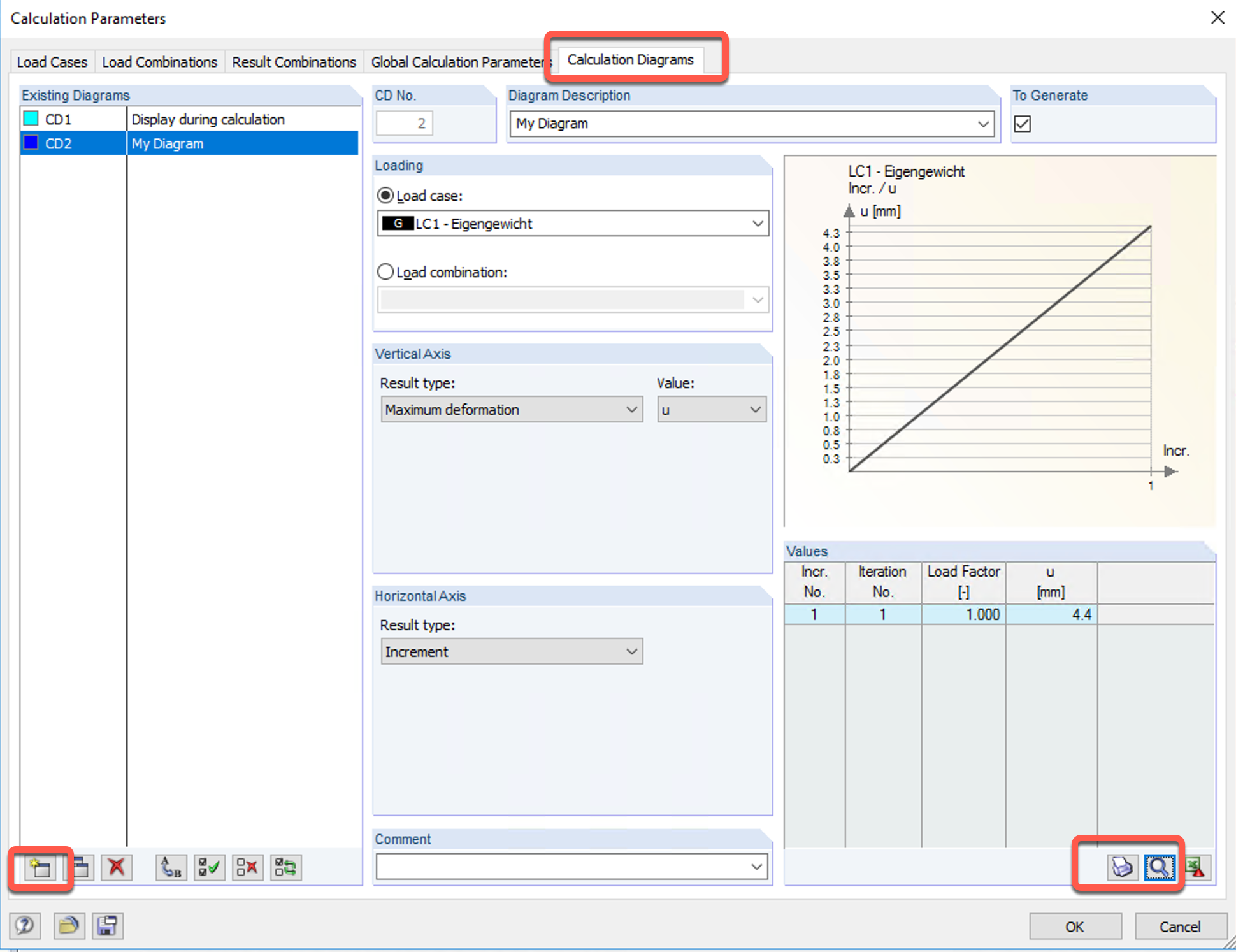

Open the "Calculation Parameters" dialog (Calculation > Calculation Parameters menu).



Create a new diagram. In the right-hand area, select the data you want to see in the diagram and close the dialog with the OK button.

If you open this dialog again after the calculation, you will see the diagram in the top right-hand corner.

You can use the Print button to send the diagram to the log or print it out directly.

Frank Faulstich
