  • Applying linear load on cell

    Hello,

    In RSTAB, how can I apply a linear load while using the option 'Generate member loads from area loads via cells'?

    Regards,
    Su

  • #2
    AW: Applying linear load on cell

    Zitat von sg89 Beitrag anzeigen
    Hello,

    In RSTAB, how can I apply a linear load while using the option 'Generate member loads from area loads via cells'?

    Regards,
    Su
    Goto Tools/Generate Loads/From Area Load via...
    Select the settings for directions and distributions as usually.

    Then:

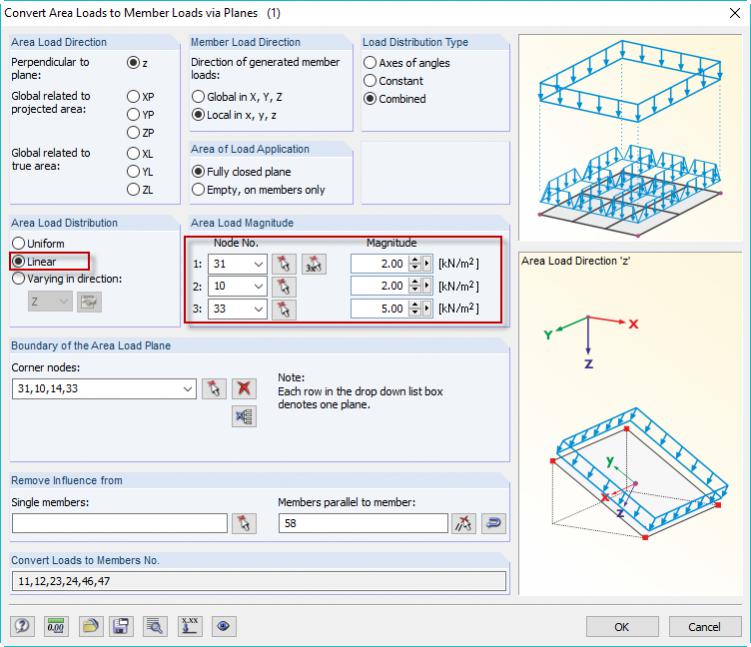

    In the dialog to convert Area Loads to Member Loads... set in the middle left under Area Load Distribution "Linear".
    Then pick three nodes at the right under "Area Load Magnitude" and assign the laods magnitudes for those nodes.

    See also the the attached image.


    Press OK and the loads will be generated.
    Angehängte Dateien
    Support Team der
    Dlubal Software GmbH
    info@dlubal.com
    https://www.dlubal.de

    Kommentar


    • #3
      AW: Applying linear load on cell

      Zitat von Walter Rustler Beitrag anzeigen
      Goto Tools/Generate Loads/From Area Load via...
      Select the settings for directions and distributions as usually.

      Then:
      In the dialog to convert Area Loads to Member Loads... set in the middle left under Area Load Distribution "Linear".
      Then pick three nodes at the right under "Area Load Magnitude" and assign the laods magnitudes for those nodes.

      See also the the attached image.


      Press OK and the loads will be generated.
      Thanks for your response! Is it possible to do this in Rstab 7.04?

      Regards,
      Su

      Kommentar


      • #4
        AW: Applying linear load on cell

        Zitat von sg89 Beitrag anzeigen
        Thanks for your response! Is it possible to do this in Rstab 7.04?

        Regards,
        Su
        Hi,
        no - in RSTAB 7 there was only linear distribution in Z-direction but not so general as it is now.
        Support Team der
        Dlubal Software GmbH
        info@dlubal.com
        https://www.dlubal.de

        Kommentar


        • #5
          AW: Applying linear load on cell

          Zitat von Walter Rustler Beitrag anzeigen
          Hi,
          no - in RSTAB 7 there was only linear distribution in Z-direction but not so general as it is now.
          Ok, thanks again!
