Connection Detail Between Launching Nose and Bridge Box Girder

Detailed view of the steel launching nose connected to the bridge box girder with equivalent stress distribution visible on surfaces.

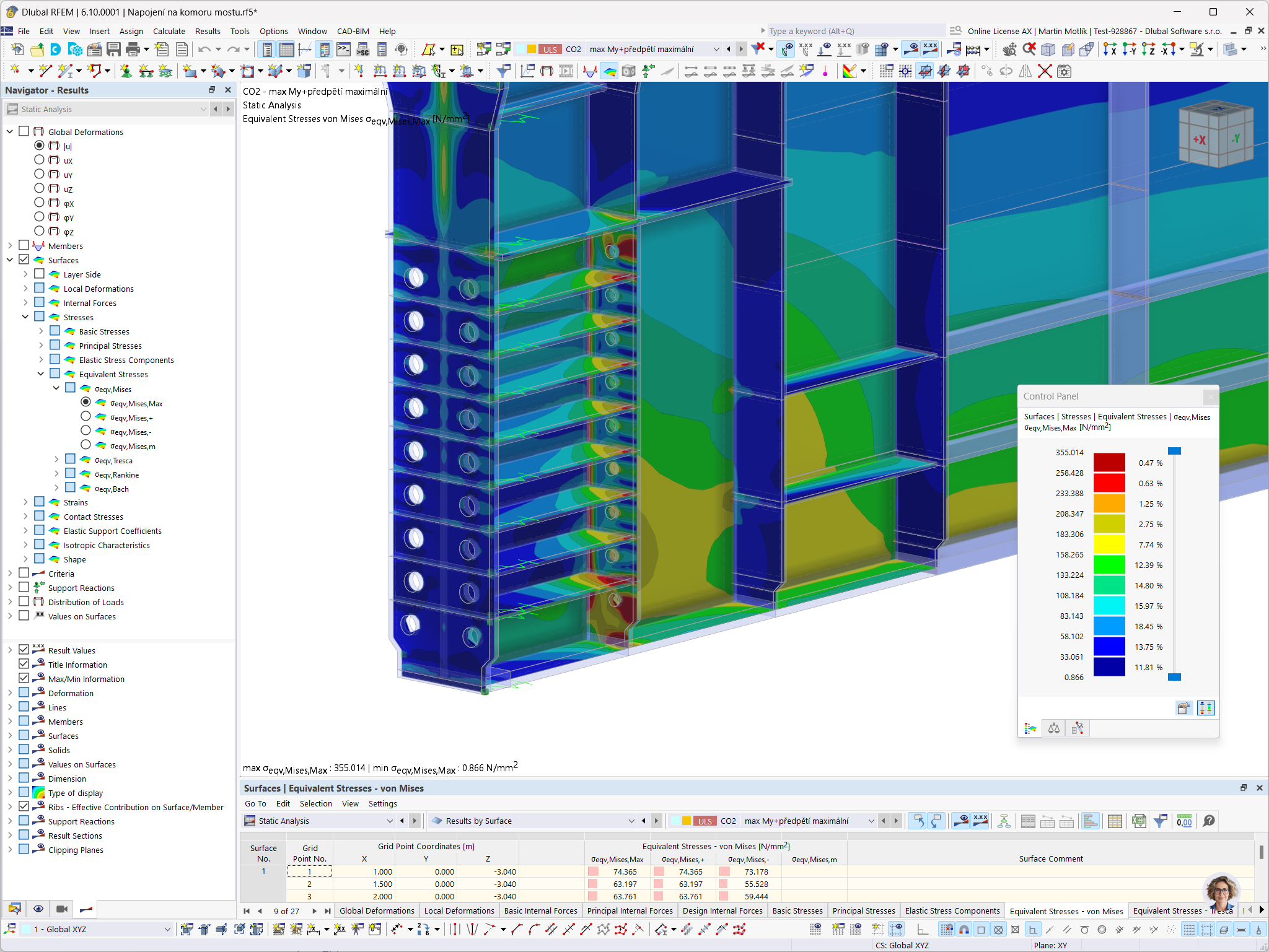

This image depicts the intricate connection detail between a steel launching nose and a bridge box girder, highlighting the equivalent stresses distributed across the surfaces. The model is a product of RFEM software expertise by engineers Petr Nečesal and David Marván from PIS PECHAL, s.r.o.
Wykorzystano w
Model 3D
Pobranie niemożliwe Projekt klienta / Tylko wyświetlanie
Więcej o modelu 3D
Specyfikacje
Liczba węzłów 744
Liczba linii 1140
Liczba prętów 978
Liczba powierzchni 20
Ilość przypadków obciążenia 172
Ilość KO 135
Liczba kombinacji wyników 5
Ciężar całkowity 111,432 t
Wymiary (metryczne) 40,420 x 5,400 x 4,467 m
Wymiary (imperialne) 132.61 x 17.72 x 14.66 feet
Wersja programu 5.36.01
