3D steel structure including a blast time history dynamic analysis.

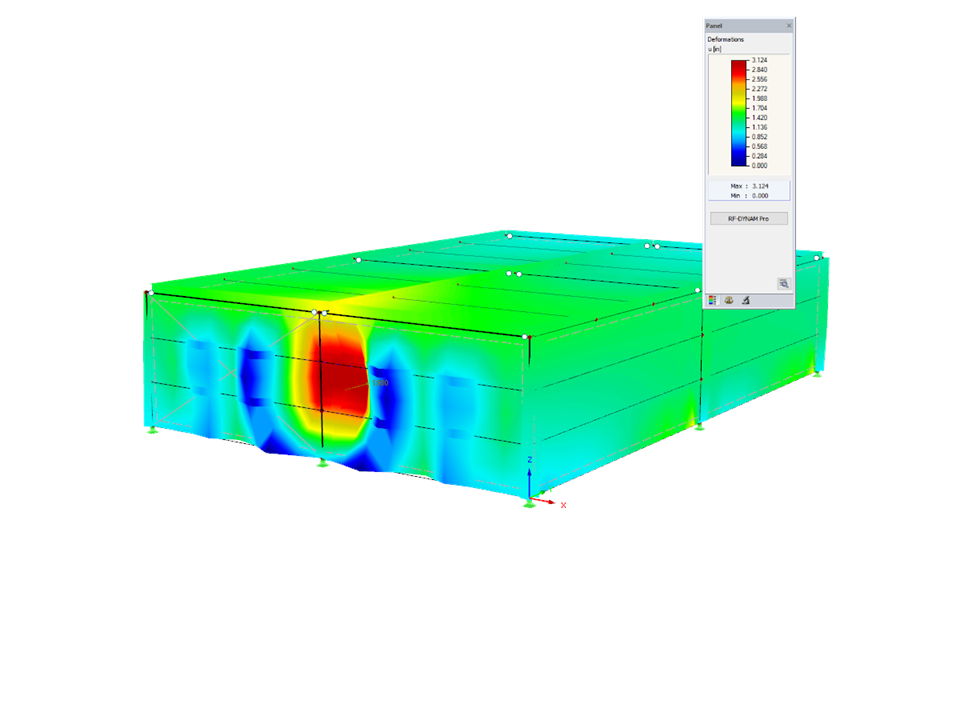

Blast Time History Analysis of Steel Structure
Number of Nodes | 63 |
Number of Lines | 129 |
Number of Members | 77 |
Number of Surfaces | 5 |
Number of Load Cases | 4 |
Total Weight | 47.416 tons |
Dimensions | 50.4 x 70.4 x 15.2 feet |
Program Version | 5.27.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
