The nested components of a telescopic boom of a construction machine, for example, transport their forces mechanically between the components. The video shows how to solve this special force transmission by modeling.

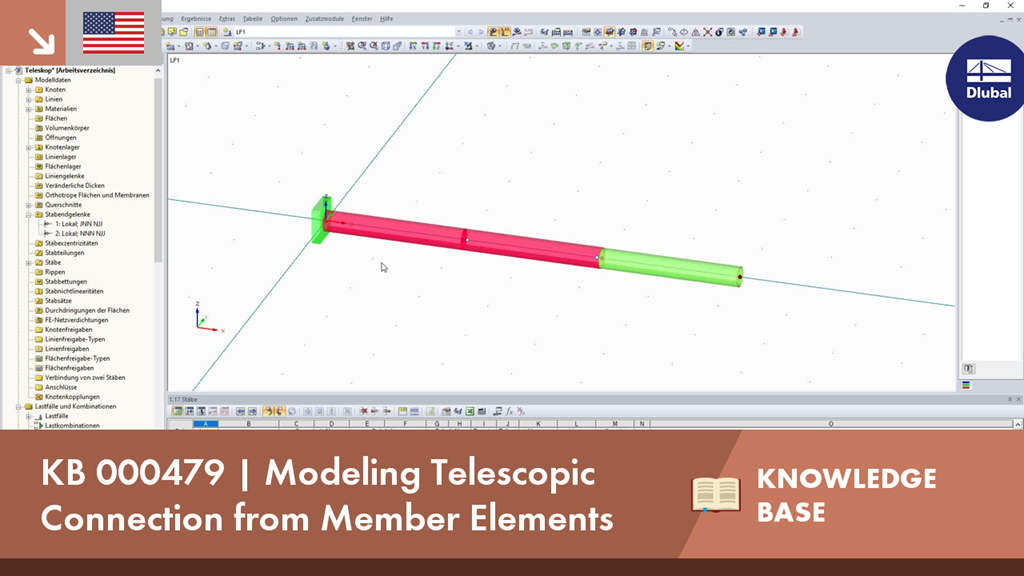

KB 000479 | Modeling Telescopic Connection from Member Elements
