Question
When I import an .stp file into RFEM, a lot of unused nodes appear. How can I avoid that?
Answer:

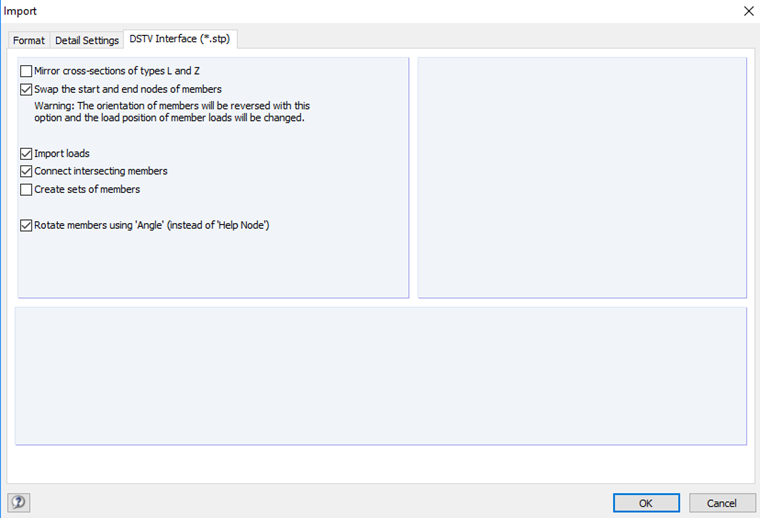

In the Detail dialog box of the import file, it is possible to select Angles instead of Nodes. See Image 01. If this is checked, the unused nodes should not occur.
