Question
How do I display some results of all load cases in the printout report, but other results of selected load cases only?
Answer:

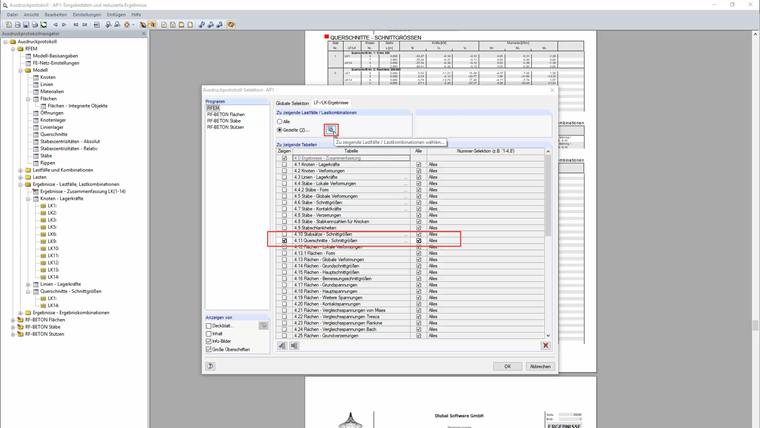

In the general printout report selection, it is possible to define the load cases to be displayed, but only for all result types. Sometimes, however, it is useful to differentiate this setting depending on the result type (for example, support forces of all load cases should be output, whereas only internal forces of the governing load cases should be displayed).

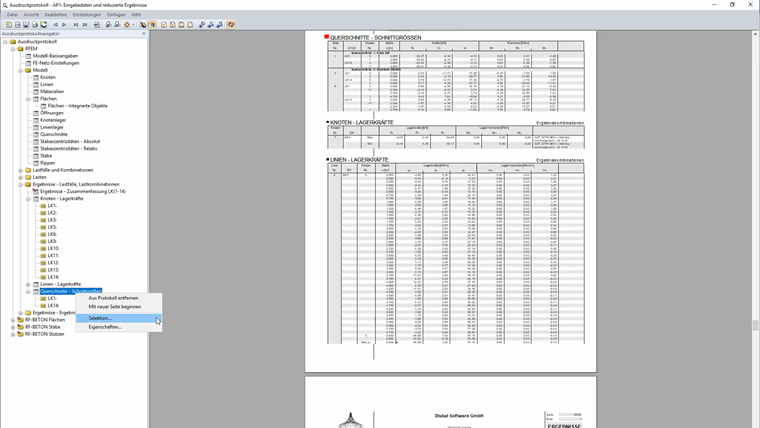

On one hand, this can be set with the special selection per result type (right-click the corresponding entry in the navigation tree).

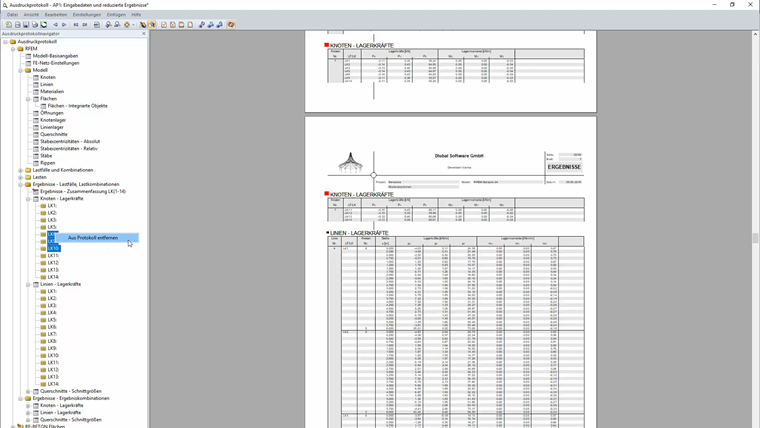

On the other hand, all load cases can remain selected in the general selection, and all unnecessary load case results are then removed manually from the navigation tree.
This manual selection can be overwritten in the global settings. The corresponding option "Overwrite Individual Settings" appears here.
