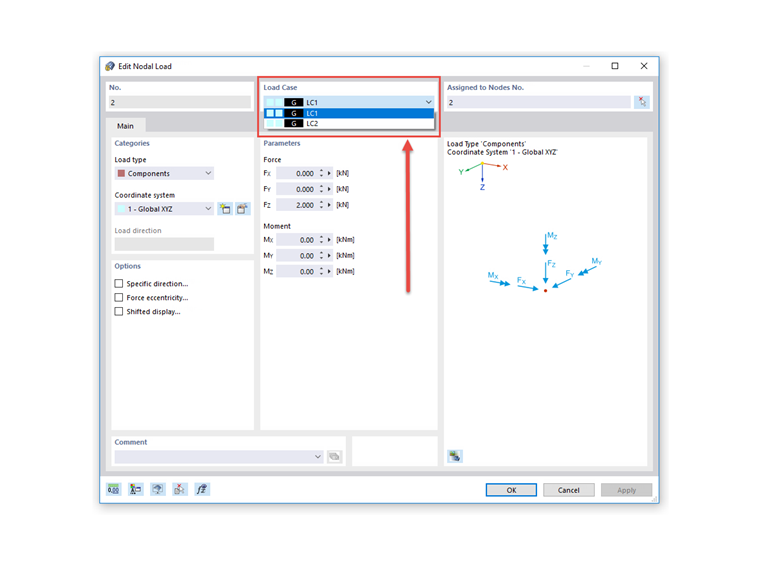

To assign existing loads to another load case, use the "Nodal Load/Member Load/Edit Area Load" dialog box under "Load Case"; see the image.
To assign existing loads to another load case, use the "Nodal Load/Member Load/Edit Area Load" dialog box under "Load Case"; see the image.
