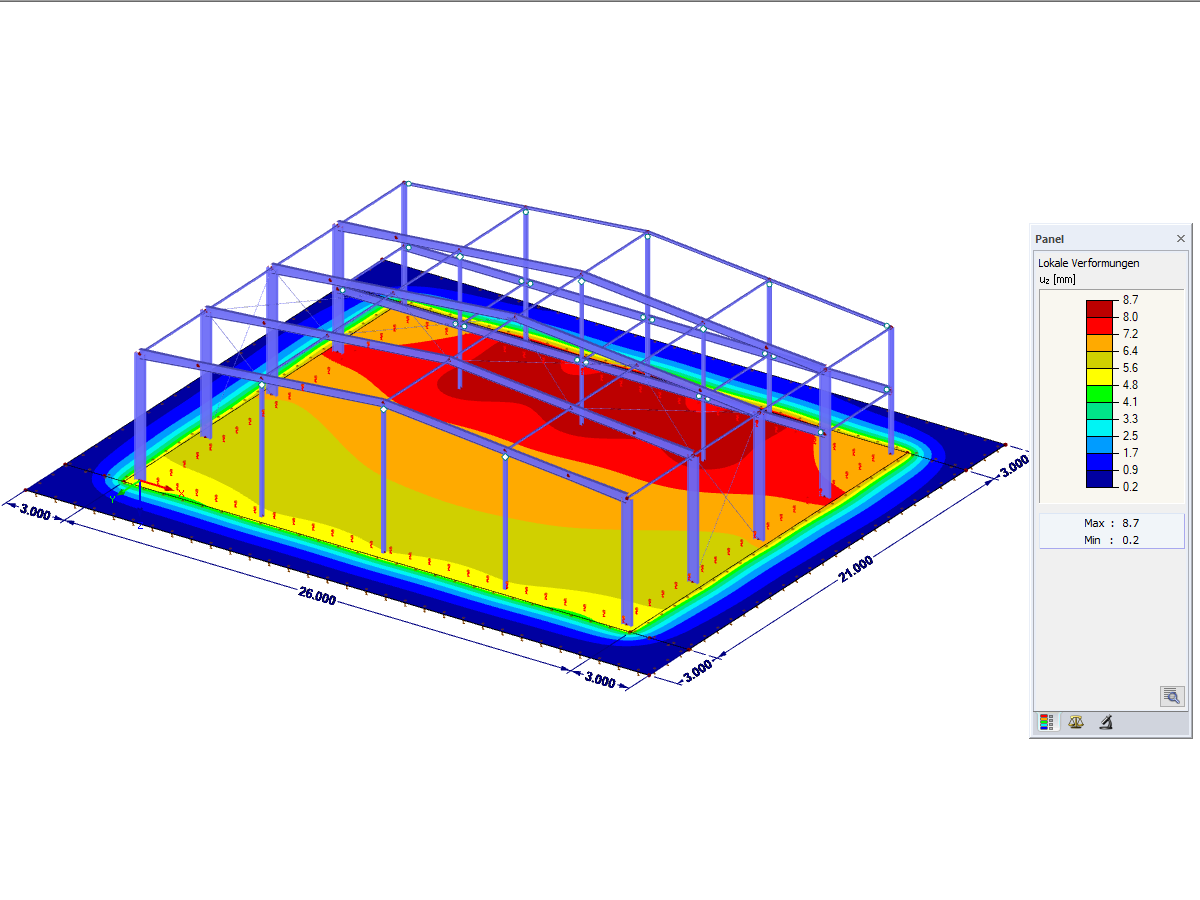

Bild 02 - Lokale Verformungen der Bodenplatte und des Bettungskragens
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 76 |
| Anzahl Linien | 118 |
| Anzahl Stäbe | 102 |
| Anzahl Flächen | 5 |
| Anzahl Lastfälle | 10 |
| Anzahl Lastkombinationen | 18 |
| Anzahl Ergebniskombinationen | 2 |
| Gesamtgewicht | 495,199 t |
| Abmessungen (metrisch) | 32.000 x 27.000 x 7.094 m |
| Abmessungen (imperial) | 104.99 x 88.58 x 23.27 feet |
| Programmversion | 5.27.01 |
