30. Mai 2024
013600

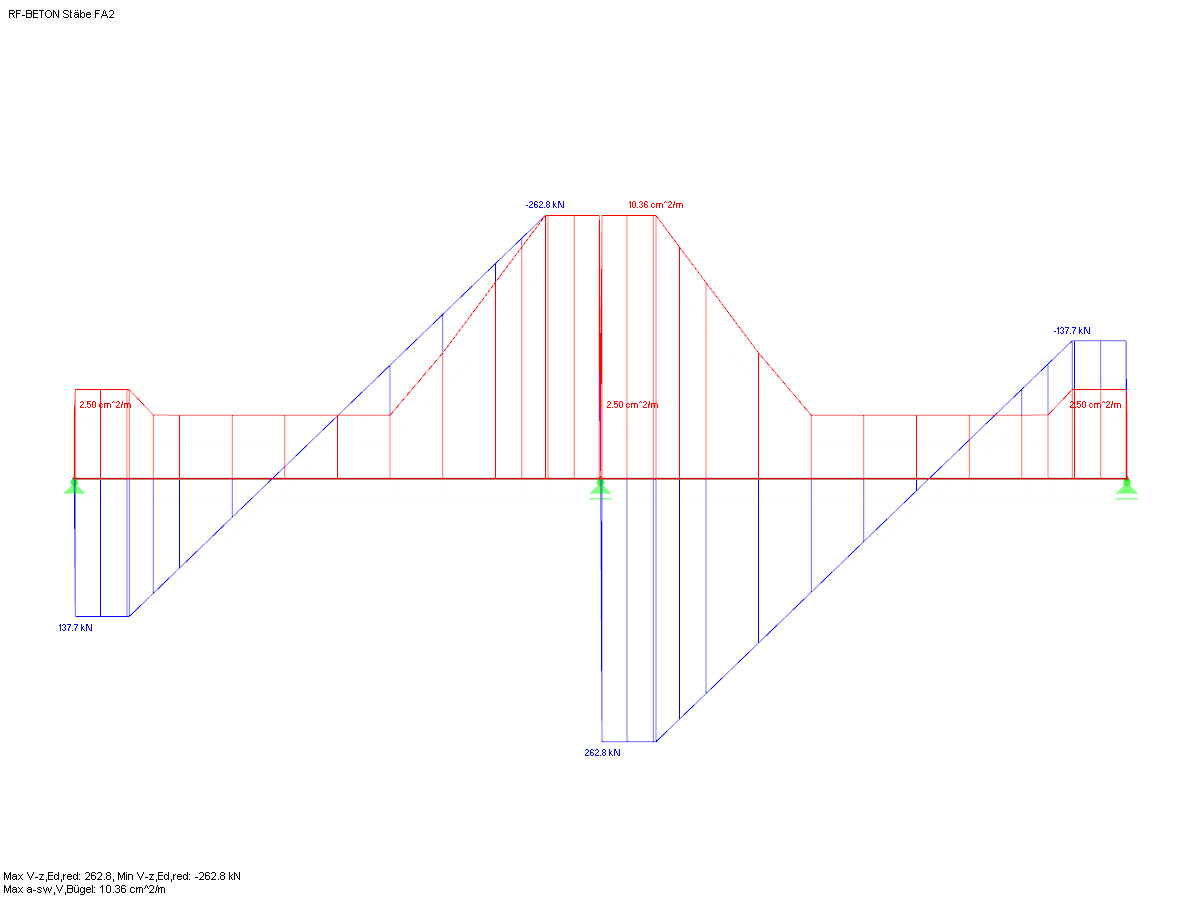

Verlauf der Querkraft Vz,red und der erforderlichen Querkraftbewehrung aus RF-BETON Stäbe
Verwendet in
3D-Modell
Spezifikationen
| Anzahl Knoten | 3 |
| Anzahl Linien | 2 |
| Anzahl Stäbe | 2 |
| Anzahl Lastfälle | 5 |
| Anzahl Lastkombinationen | 36 |
| Anzahl Ergebniskombinationen | 6 |
| Gesamtgewicht | 2.700 t |
| Abmessungen (metrisch) | 8.172 x 0.172 x 0.172 m |
| Abmessungen (imperial) | 26.81 x 0.56 x 0.56 feet |
| Programmversion | 5.24.01 |
30. Mai 2024
013710
Zweifeldträger aus Stahlbeton
Zweifeldträger
3D-Modell
Spezifikationen
| Anzahl Knoten | 3 |
| Anzahl Linien | 2 |
| Anzahl Stäbe | 2 |
| Anzahl Lastfälle | 5 |
| Anzahl Lastkombinationen | 36 |
| Anzahl Ergebniskombinationen | 6 |
| Gesamtgewicht | 2.700 t |
| Abmessungen (metrisch) | 8.172 x 0.172 x 0.172 m |
| Abmessungen (imperial) | 26.81 x 0.56 x 0.56 feet |
| Programmversion | 5.24.01 |
