RFEM Model | CSA Timber Column Design
CSA Timber Column Design
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.012 tons |
| Dimensions (Metric) | 0.000 x 3.048 x 0.000 m |
| Dimensions (Imperial) | 0 x 10 x 0 feet |
2024-03-09
013994
Mountain and Valley Station of 3S Cableway Klein Matterhorn in Zermatt, Switzerland
2024-03-09
013521
Buildings made of cross-laminated timber (CLT), glued-laminated timber, and OSB panels modeled with the RFEM program

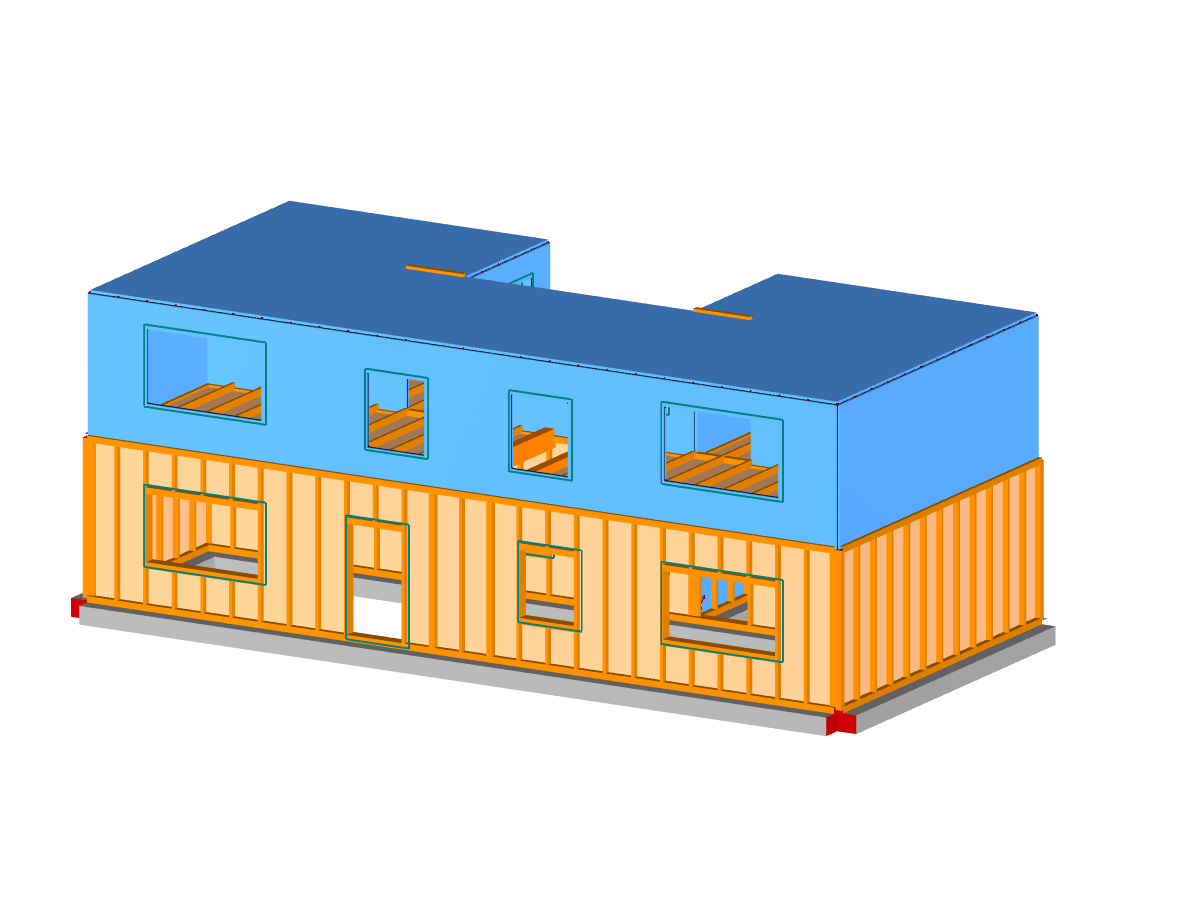

Cross-Laminated Timber Building (CLT)
3D Model
Specifications
| Number of Nodes | 533 |
| Number of Lines | 460 |
| Number of Members | 314 |
| Number of Surfaces | 28 |
| Number of Load Cases | 6 |
| Number of Result Combinations | 164 |
| Total Weight | 62.136 t |
| Dimensions (Metric) | 15.600 x 10.200 x 5.935 m |
| Dimensions (Imperial) | 51.18 x 33.46 x 19.47 feet |
| Program Version | 5.23.02 |
"Salvador Allende" Gym in Cavezzo, Italy
Used in
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 125 |
| Number of Lines | 181 |
| Number of Members | 69 |
| Number of Surfaces | 12 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 44 |
| Number of Result Combinations | 6 |
| Total Weight | 822.657 tons |
| Dimensions (Metric) | 39.075 x 25.240 x 9.798 m |
| Dimensions (Imperial) | 128.2 x 82.81 x 32.15 feet |
| Program Version | 5.06.10 |
2024-03-09
011642
Model of Glulam Hall
Glued-Laminated Timber Hall
3D Model
Specifications
| Number of Nodes | 139 |
| Number of Lines | 183 |
| Number of Members | 183 |
| Number of Load Cases | 15 |
| Total Weight | 14.328 t |
| Dimensions (Metric) | 15.150 x 24.884 x 7.178 m |
| Dimensions (Imperial) | 49.7 x 81.64 x 23.55 feet |
| Program Version | 5.17.02 |
Timber truss
Timber Truss
Used in
3D Model
Specifications
| Number of Nodes | 18 |
| Number of Members | 33 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 5 |
| Number of Result Combinations | 2 |
| Total Weight | 1.929 tons |
| Dimensions (Metric) | 20.500 x 0.500 x 3.250 m |
| Dimensions (Imperial) | 67.26 x 1.64 x 10.66 feet |
| Program Version | 8.24.02 |
