2024-05-30
013601

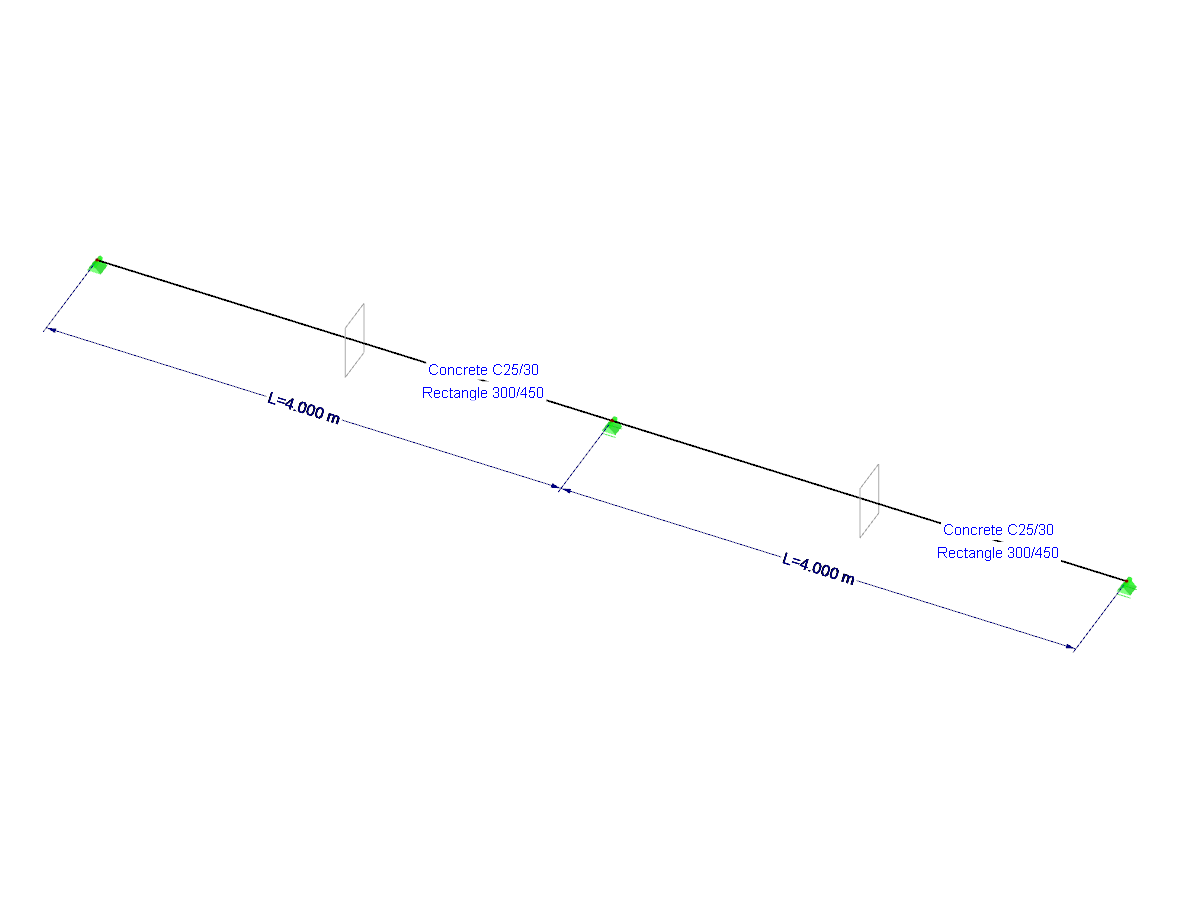

Structural System with Cross-Section Dimension Details and Material
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 36 |
| Number of Result Combinations | 6 |
| Total Weight | 2.700 t |
| Dimensions (Metric) | 8.172 x 0.172 x 0.172 m |
| Dimensions (Imperial) | 26.81 x 0.56 x 0.56 feet |
| Program Version | 5.24.01 |
