2024-05-30
014938

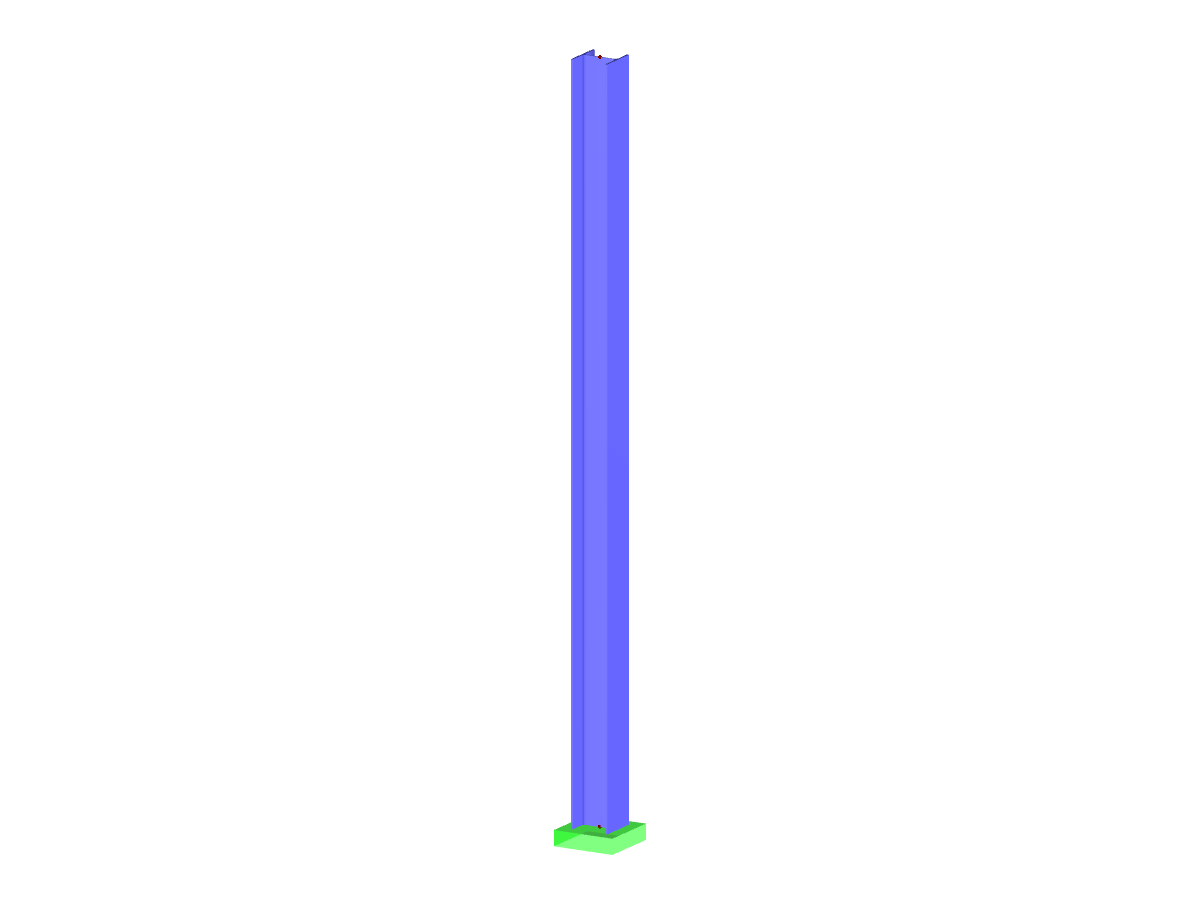

Steel Cantilever Beam with Connection to Foundation Plate
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 34 |
| Number of Result Combinations | 4 |
| Total Weight | 0,202 t |
| Dimensions (Metric) | 0.500 x 0.500 x 4.250 m |
| Dimensions (Imperial) | 1.64 x 1.64 x 13.94 feet |
| Program Version | 5.24.02 |
