Fanggraben railroad bridge is part of a new sleeper production plant in Biebesheim am Rhein.
Fanggraben Railroad Bridge in Biebesheim am Rhein, Germany
3D Model
Specifications
| Number of Nodes | 346 |
| Number of Lines | 519 |
| Number of Surfaces | 115 |
| Number of Load Cases | 10 |
| Number of Load Combinations | 10 |
| Total Weight | 63.841 tons |
| Dimensions (Metric) | 16.320 x 5.550 x 1.033 m |
| Dimensions (Imperial) | 53.54 x 18.21 x 3.39 feet |
| Program Version | 5.25.01 |
2024-05-30
015581

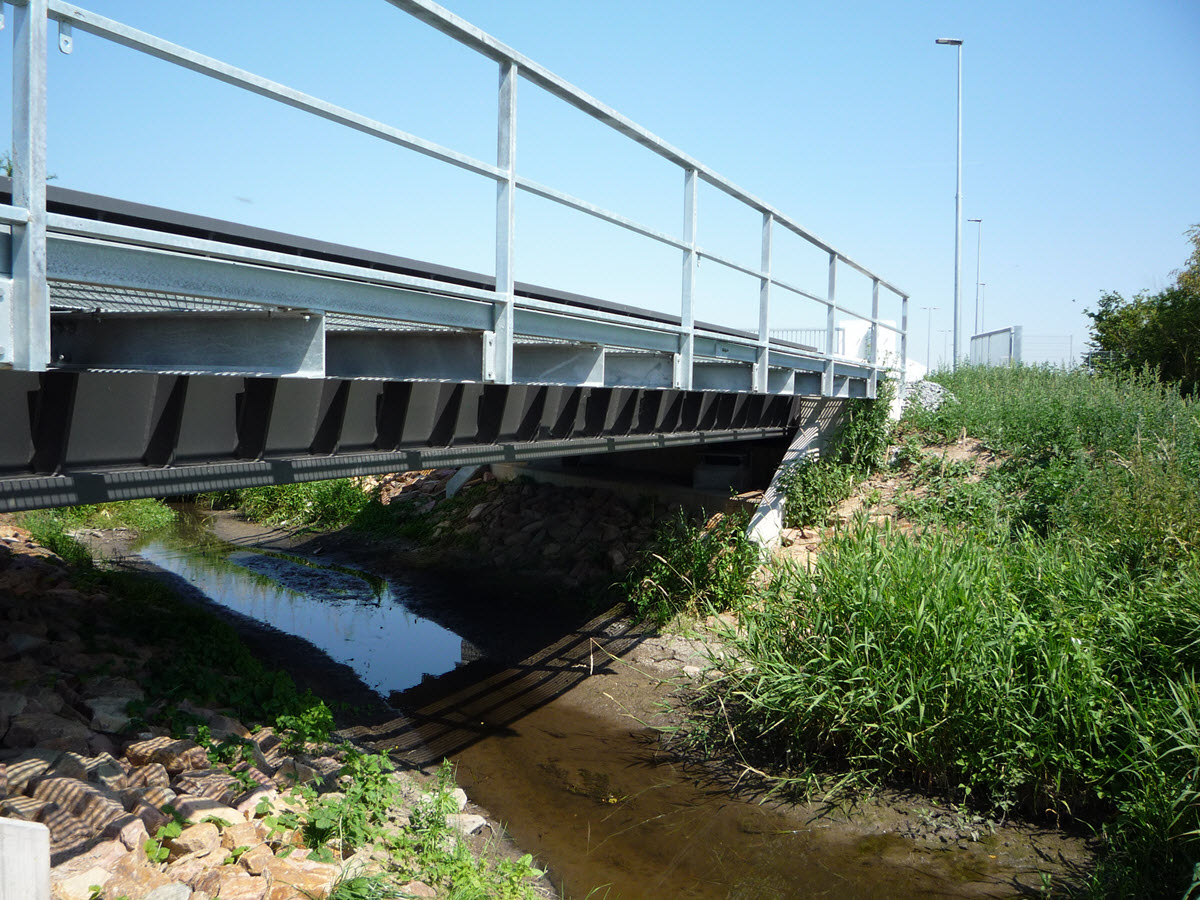

Fanggraben Railroad Bridge in Biebesheim am Rhein (© Schröder + Raue)
2024-05-30
015586

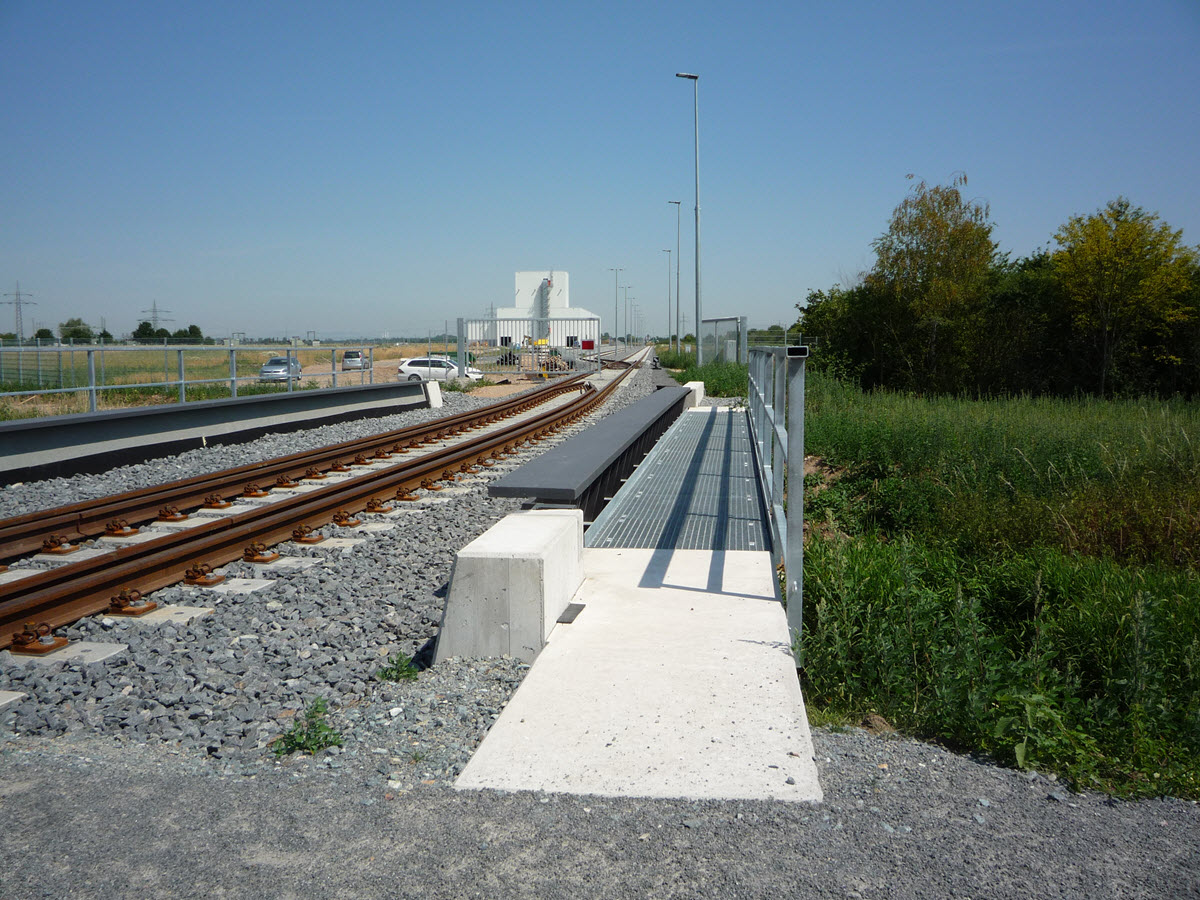

Bridge with Tracks (© Schröder + Raue)
2024-05-30
015582

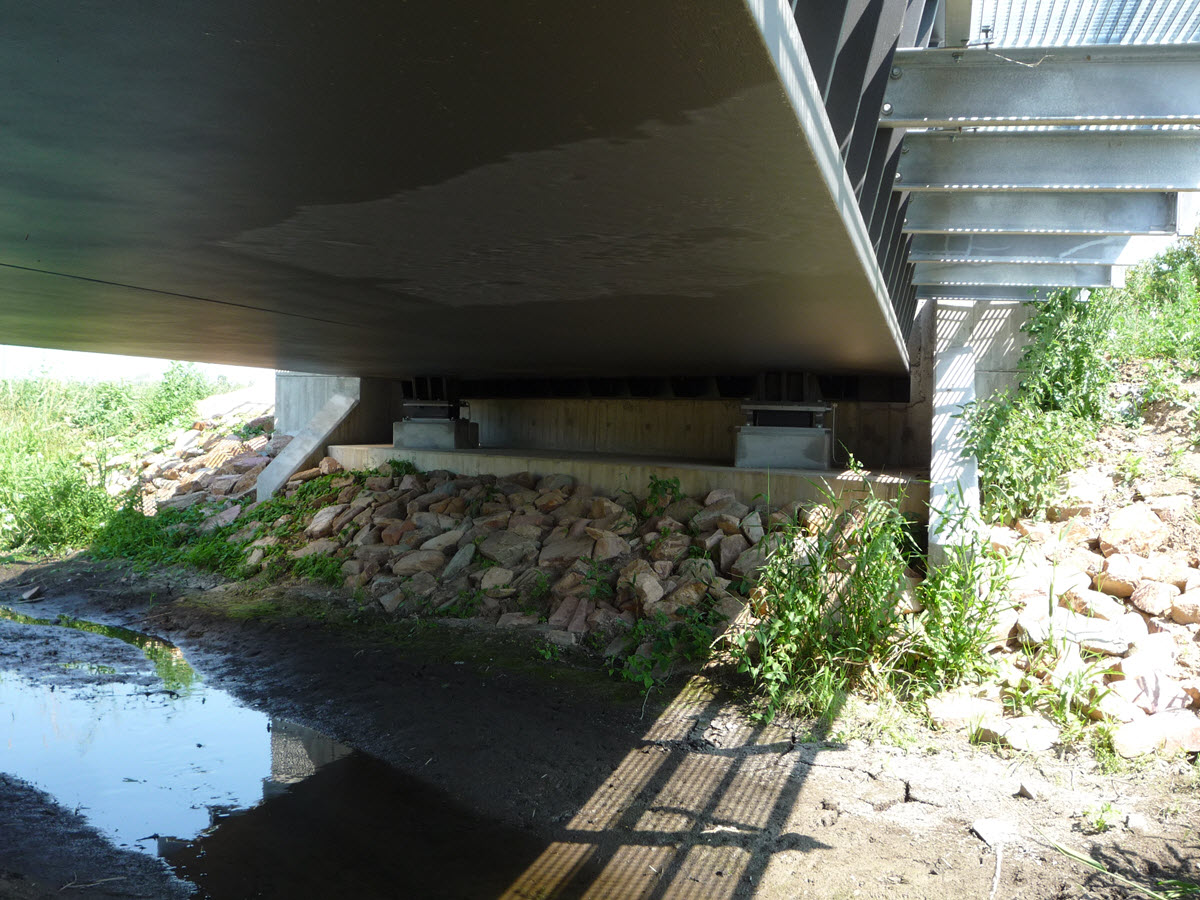

View of Underside of Bridge, Including Support Bearings (© Schröder + Raue)
2024-05-30
015578

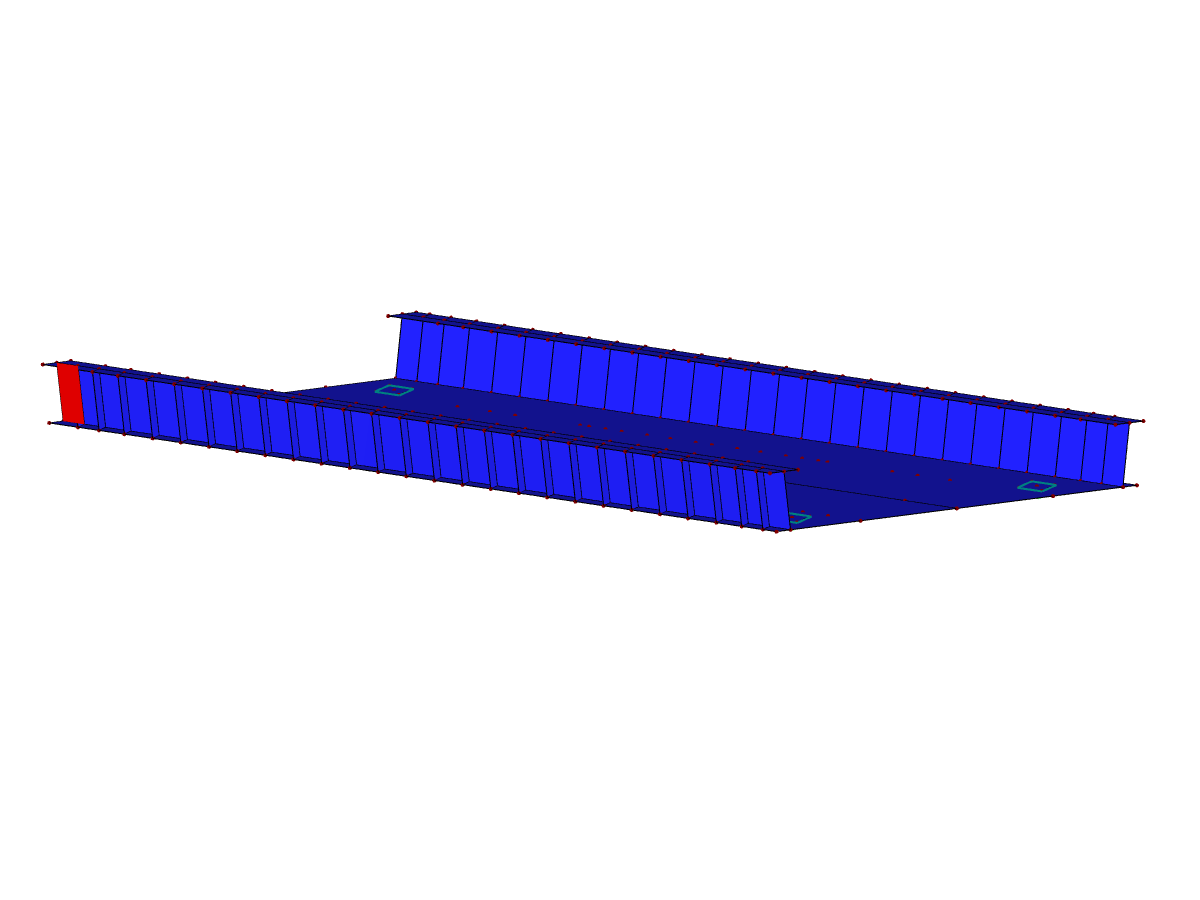

RFEM 3D Bridge Model (© Schröder + Raue)
3D Model
Specifications
| Number of Nodes | 346 |
| Number of Lines | 519 |
| Number of Surfaces | 115 |
| Number of Load Cases | 10 |
| Number of Load Combinations | 10 |
| Total Weight | 63.841 tons |
| Dimensions (Metric) | 16.320 x 5.550 x 1.033 m |
| Dimensions (Imperial) | 53.54 x 18.21 x 3.39 feet |
| Program Version | 5.25.01 |
2024-05-30
015579

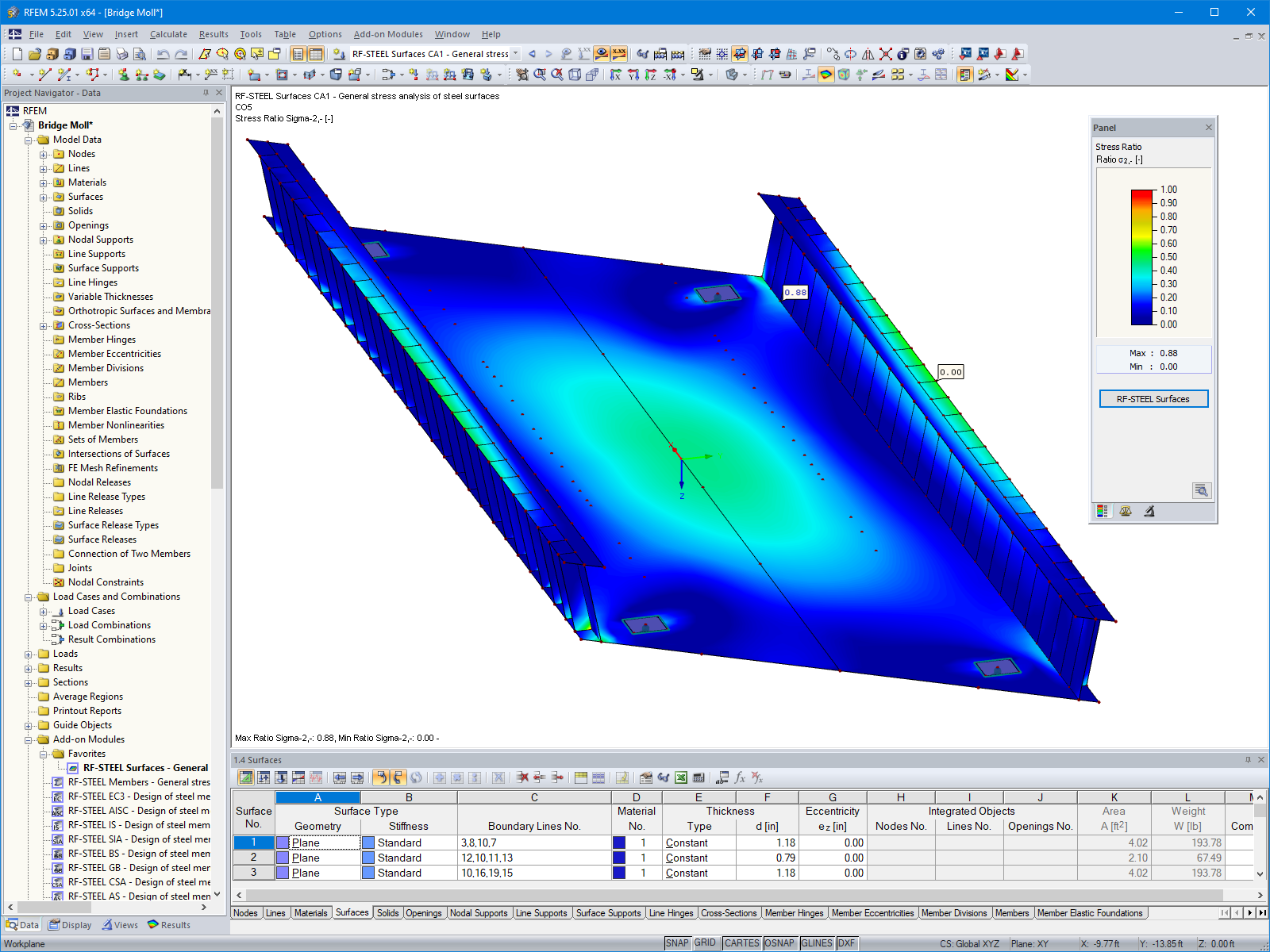

RFEM 3D Bridge Model (© Schröder + Raue)
