The model shows an elegant half-through bridge made of steel, designed as a railway superstructure. The detailed structural design was carried out by Schröder + Raue, an engineering office for structural design based in Zwickau, Germany.

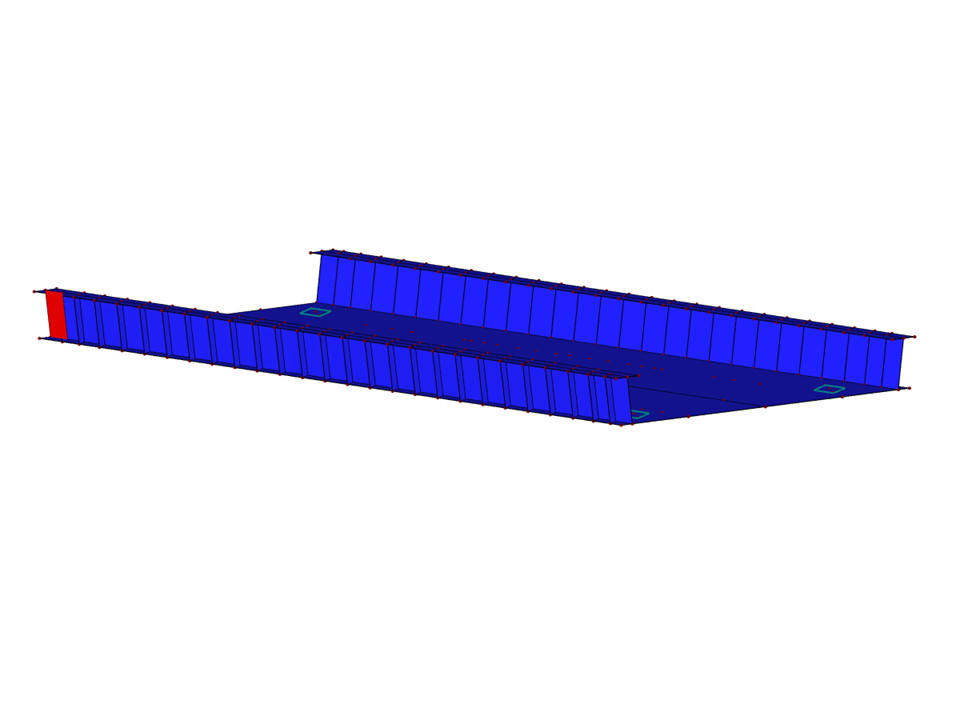

The rendering visualizes the characteristic steel structure and illustrates the precise structural design. The realistic display highlights the modern implementation in the field of steel structures. All information presented summarizes the overall structural concept in a coherent manner.
Steel Half-Trough Bridge | Railway Superstructure
No Download Possible
Customer Project / View Only
| Number of Nodes | 346 |
| Number of Lines | 519 |
| Number of Surfaces | 115 |
| Number of Load Cases | 10 |
| Number of Load Combinations | 10 |
| Total Weight | 63,841 t |
| Dimensions (Metric) | 16.320 x 5.550 x 1.033 m |
| Dimensions (Imperial) | 53.54 x 18.21 x 3.39 feet |
| Program Version | 5.25.01 |
