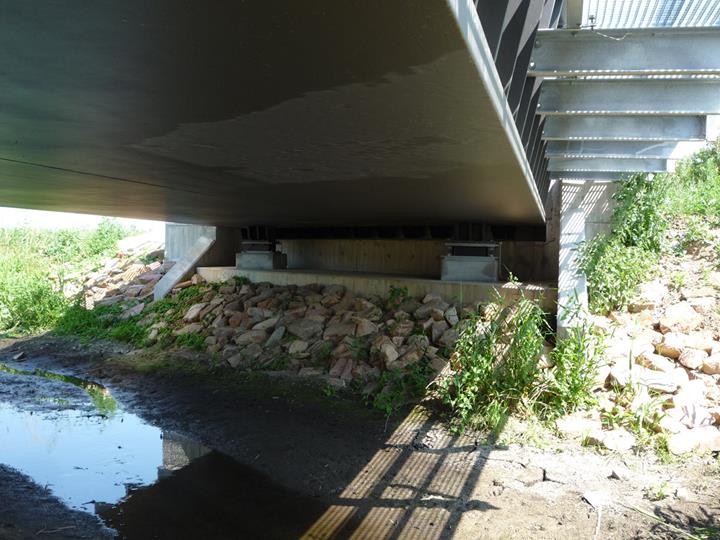

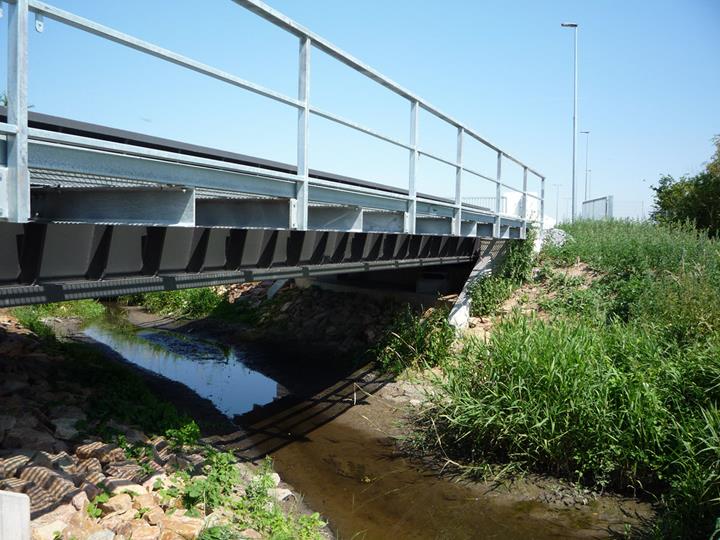

Fanggraben Railway Bridge in Biebesheim am Rhein, Germany

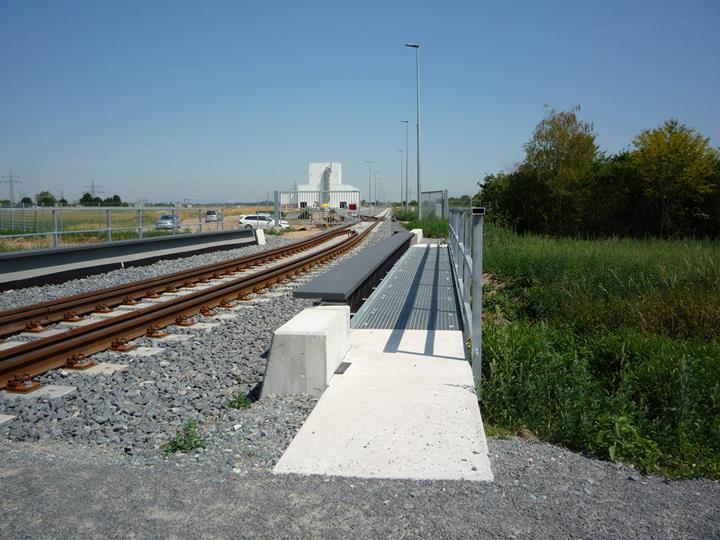

The railway bridge over the Fanggraben river is part of a manufacturing plant’s new construction in Biebesheim am Rhein.
LM BW Projekt GmbH & Co. KG
64584 Biebesheim, Germany
|Rail Siding Facility Draft||
Bauplanungsbüro M & K
08107 Kirchberg, Germany
|Bridge Structural Engineering||
Schröder + Raue
Ingenieurbüro für Tragwerksplanung GbR
08058 Zwickau, Germany
The plant, which manufactures railroad ties, required access over the Fanggraben river to the rail siding warehouse. The new railway bridge spans the Fanggraben river at an incline angle of 63 gradians (56.7°).
Due to the limited distance between the top of rail to the top of the water height, the bridge’s supporting structure required a minimal depth. A steel half-through bridge design constructed with a thick sheet metal deck without supporting transverse beams was selected.

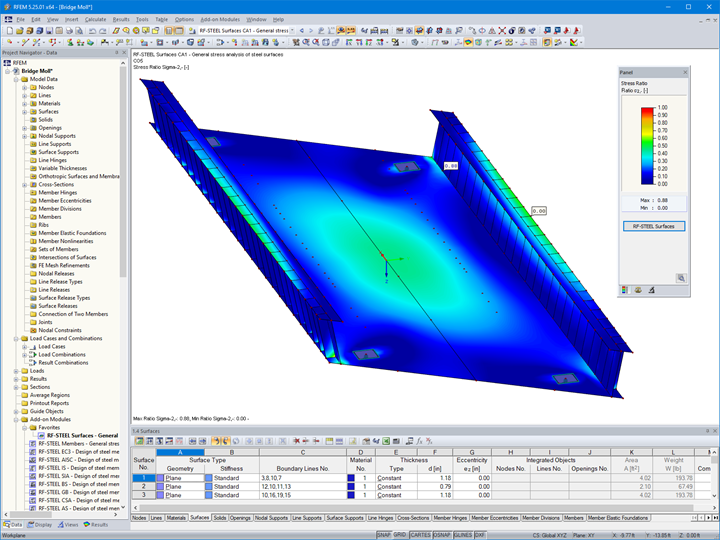

The bridge dimensions include a 42 ft length, 37 ft span, and 16 ft clear width. The engineering office Schröder + Raue from Zwickau utilized the finite element program RFEM to analyze and design the structure.
