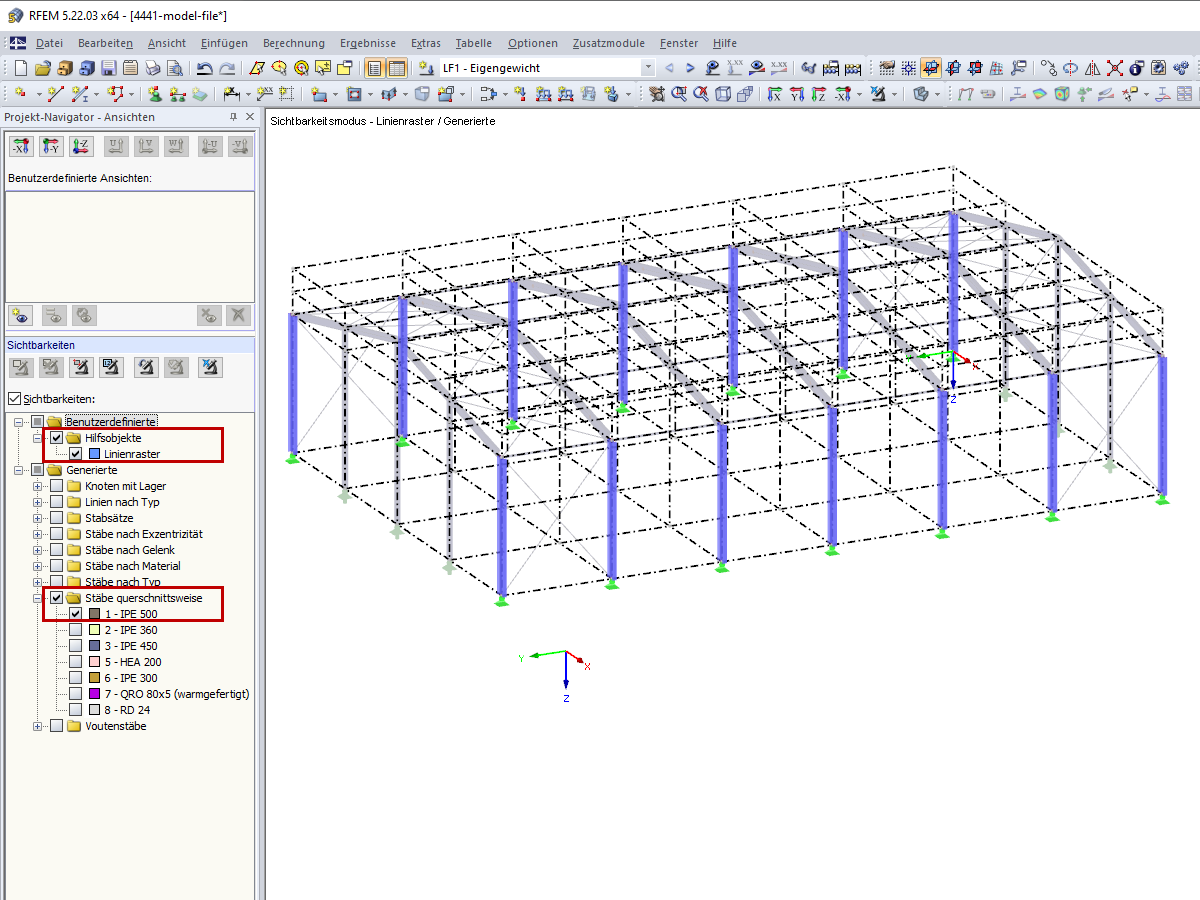

Visibility Line Grid with Generated Visibility
3D Model
Specifications
| Number of Nodes | 65 |
| Number of Lines | 112 |
| Number of Members | 112 |
| Number of Load Cases | 16 |
| Number of Load Combinations | 328 |
| Number of Result Combinations | 2 |
| Total Weight | 19,421 t |
| Dimensions (Metric) | 20.960 x 30.960 x 8.480 m |
| Dimensions (Imperial) | 68.77 x 101.57 x 27.82 feet |
| Program Version | 5.23.02 |
