How can I add a line grid to visibility?

Answer

The visibility settings are available for line grids as for other objects, such as nodes, members, and others.

If the visibility should include a line grid in addition to the objects, select the relevant objects and the line grid. Then, you can use the "Visibility by Selected Objects" button to display the selected objects as a partial view. As an alternative, you can create a user-defined visibility by using the "Create New User-Defined Visibility" button (Figure 01). To be able to select the line grid, please follow FAQ 4385.

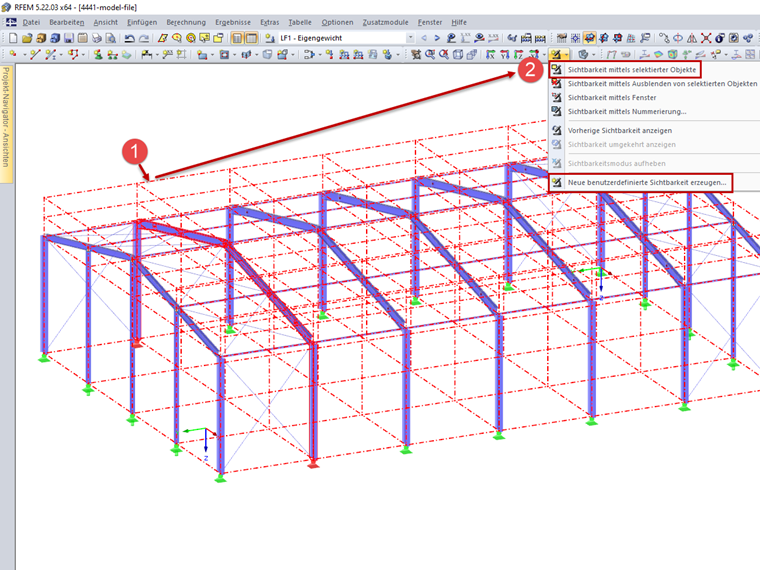

Figure 01 - Selecting Objects Including Line Grid (1) and Setting Visibility (2)

If you want to display the line grid in addition to the generated or user-defined visibilities, it is necessary to crete the line grid as a user-defined visibility. Creating a user-defined visibility is shown in FAQ 4436. Now, the line grid can be displayed in addition to the generated or user-defined visibilities (Figure 02) by selecting the check box for the user-defined visibility of the line grid and the corresponding generated or user-defined visibilities.

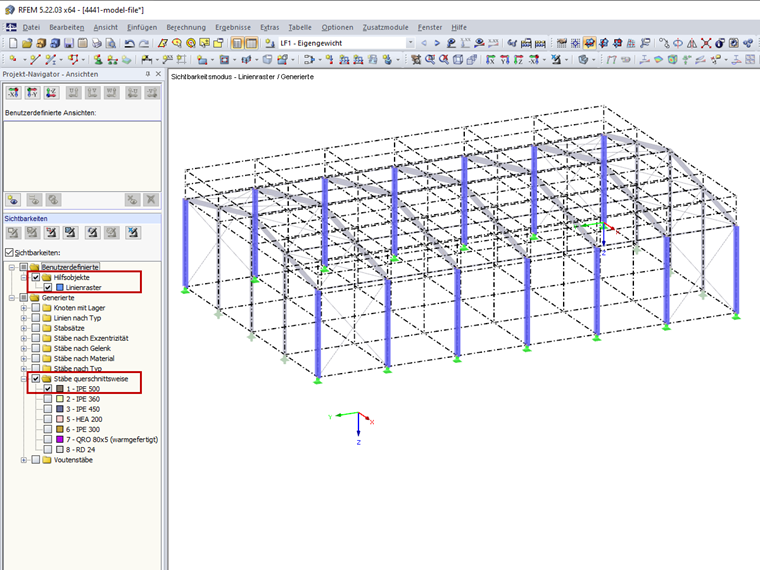

Figure 02 - Visibility Line Grid with Generated Visibility

Keywords

Line grid Visibility
