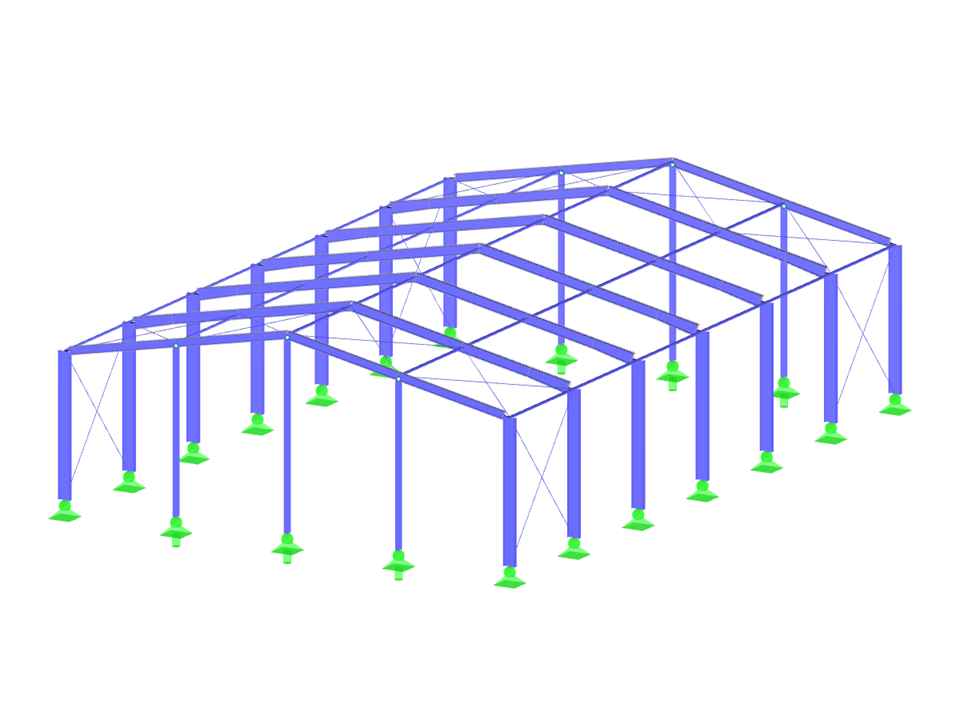

The model demonstrates how RF-/STEEL EC3 can assign identical input data to multiple members and member sets in a steel hall simultaneously. This simultaneous input enables efficient multi-processing and optimizes the modeling process. This approach avoids time-consuming repetitions and ensures consistency of input data. The attached image (https://www.dlubal.com/img/15948) exemplarily visualizes the structure of the steel construction.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Multiple Assignment in Steel Hall

Number of Nodes 65
Number of Lines 112
Number of Members 112
Number of Load Cases 16
Number of Load Combinations 328
Number of Result Combinations 2
Total Weight 19,421 t
Dimensions (Metric) 20.960 x 30.960 x 8.480 m
Dimensions (Imperial) 68.77 x 101.57 x 27.82 feet
Program Version 5.23.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
