FAQ 5726 | Calculation Diagram Group for Elongation
FAQ 5726 | Calculation diagram group for the elongation

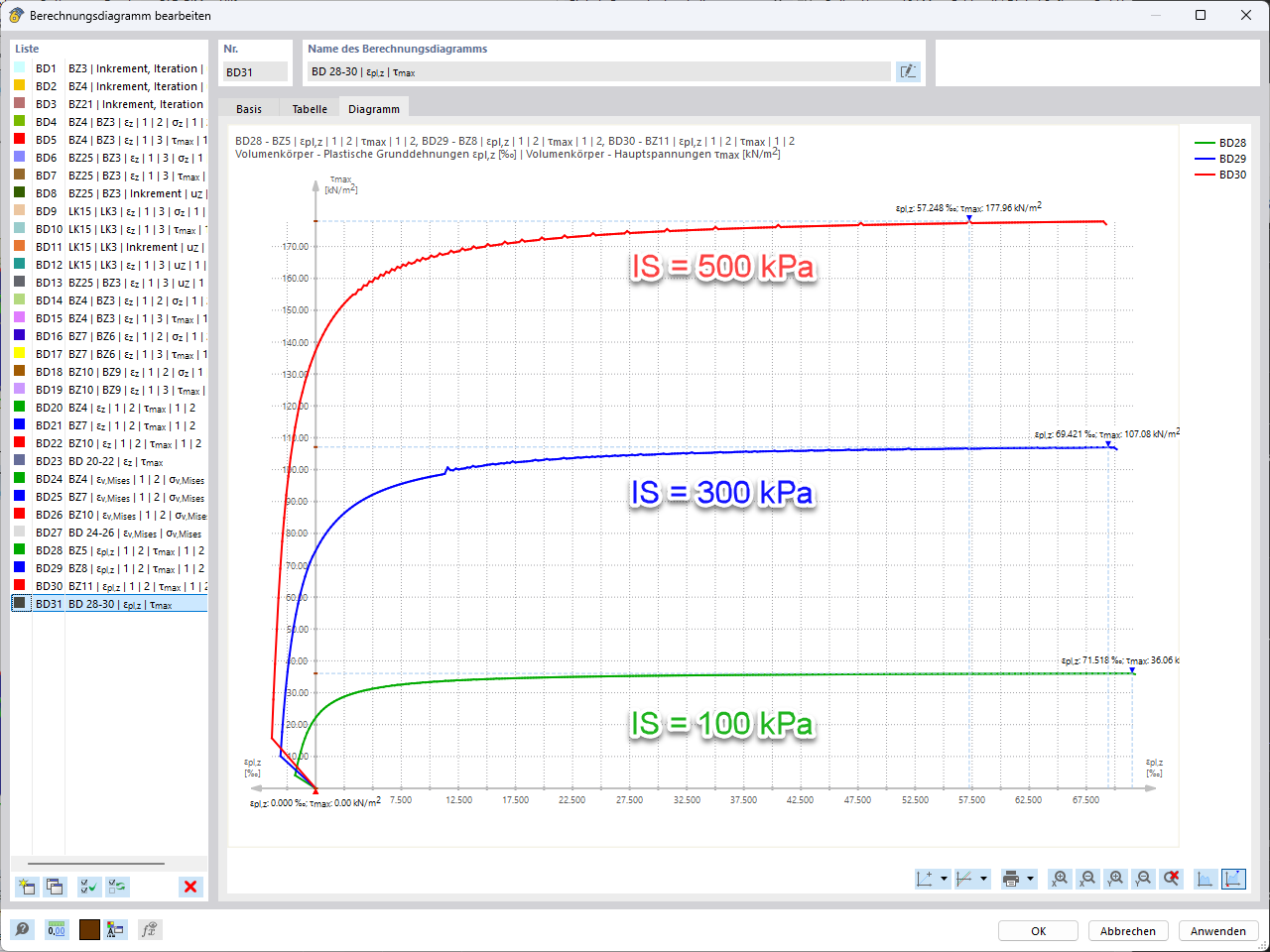

The calculation diagram group for the maximum shear stress for plastic strain in the vertical direction of the construction stages of axial elongation with different isotropic initial stress states (IS) is shown.
3D Model
More About 3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 6 |
| Total Weight | 0,000 t |
| Dimensions (Metric) | 1,000 x 1,000 x 1,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 3.28 feet |
