This model is intended for the adaptation and recalculation of material tests under triaxial conditions. The default setting is a material with a modified hardening soil material model and test conditions according to Bower et al. (Bower T.A., Jefferson A.D., & Cleall P.J. (2020). A reformulated hardening soil model. Proceedings of the Institution of Civil Engineers – Engineering and Computational Mechanics 173(1): 11–29. https://doi.org/10.1680/jencm.18.00054 ). In addition to axial strain, axial elongation related to two further isotropic initial stress states was also considered here.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

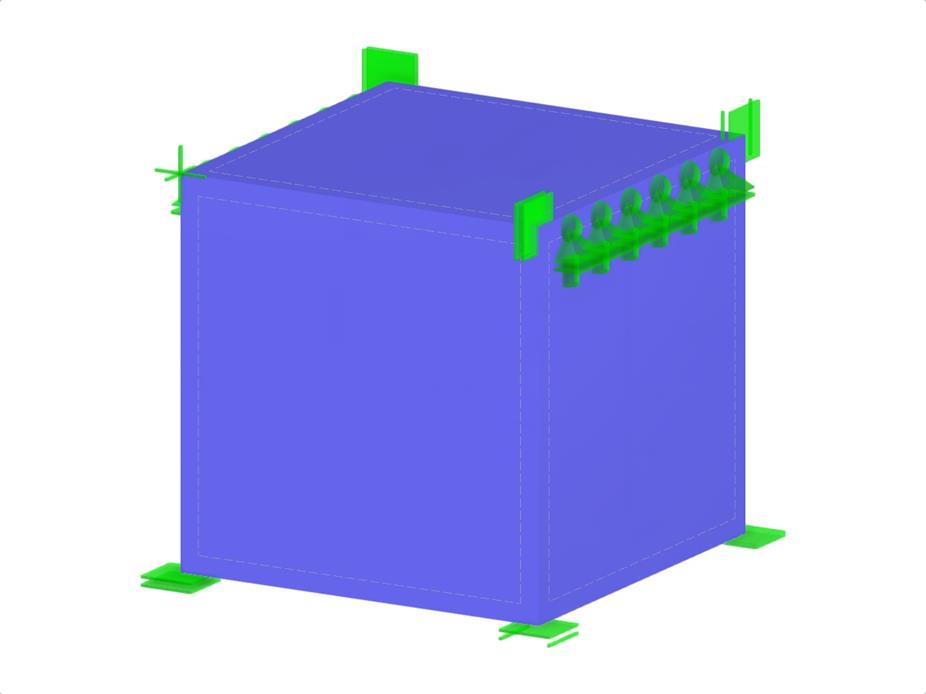

FAQ 5726 | Single Element Test – Triaxial Conditions – Modified Hardening Soil Material Model

Number of Nodes 8
Number of Lines 12
Number of Members 0
Number of Surfaces 6
Number of Solids 1
Number of Load Cases 12
Number of Load Combinations 9
Number of Result Combinations 6
Total Weight 0,000 t
Dimensions (Metric) 1,000 x 1,000 x 1,000 m
Dimensions (Imperial) 3.28 x 3.28 x 3.28 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
