Global Deformation Results of Industrial Warehouse

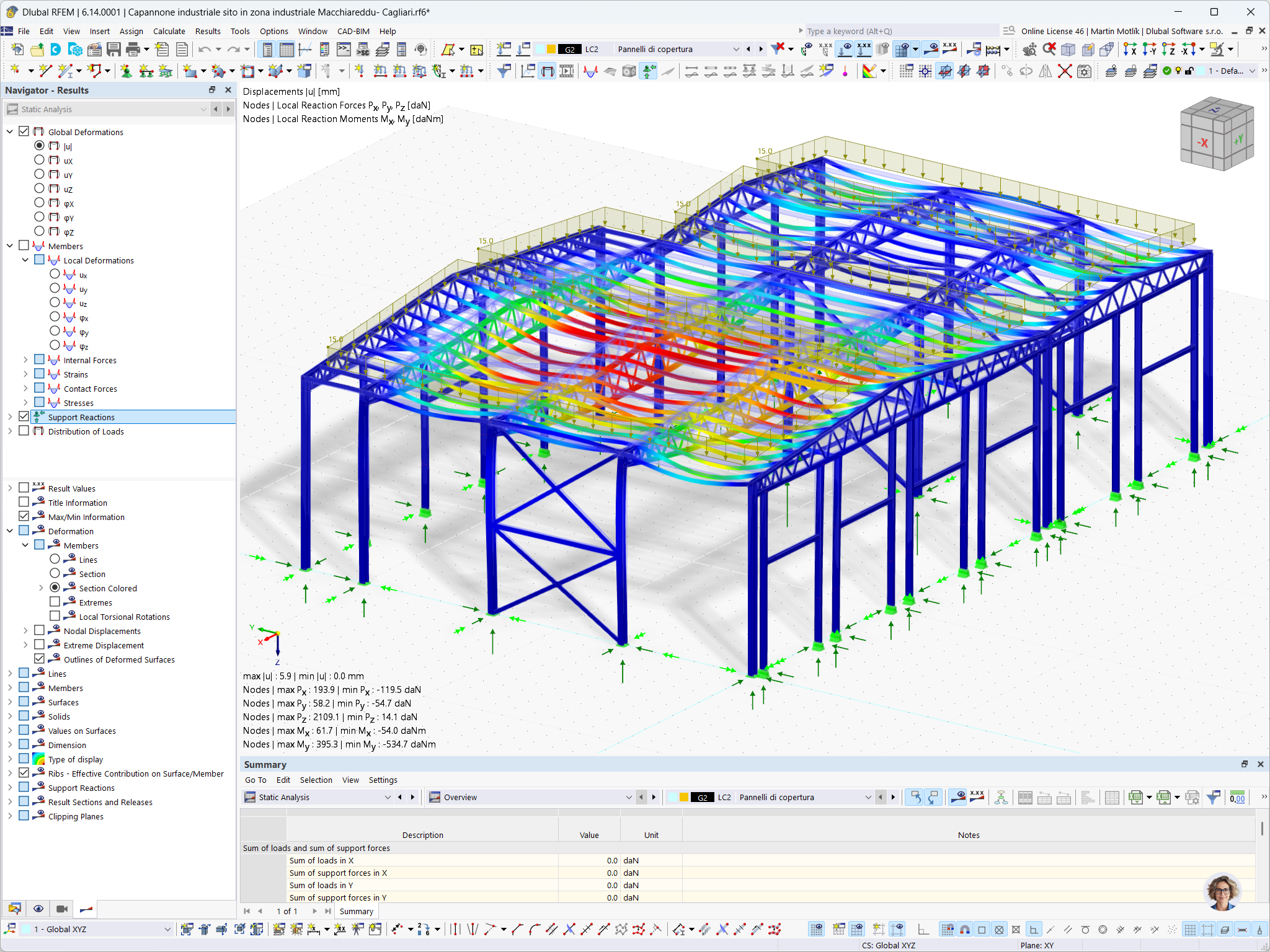

Global deformation results displayed for a steel-framed industrial warehouse under roof panel loading, analyzed in RFEM 6.
The image illustrates the global deformation results of a steel-framed industrial warehouse modeled as a mechanical workshop. The structure is located in the Macchiareddu industrial zone near Cagliari. This analysis and design were conducted using RFEM 6 by Profilsider SpA. The focus lies on the effect of roof panel loading on the overall structure.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 502 |
| Number of Lines | 1037 |
| Number of Members | 967 |
| Number of Surfaces | 11 |
| Number of Solids | 0 |
| Number of Load Cases | 15 |
| Number of Load Combinations | 119 |
| Number of Result Combinations | 2 |
| Total Weight | 33.898 tons |
| Dimensions (Metric) | 51.489 x 9.846 x 27.908 m |
| Dimensions (Imperial) | 168.93 x 32.3 x 91.56 feet |
