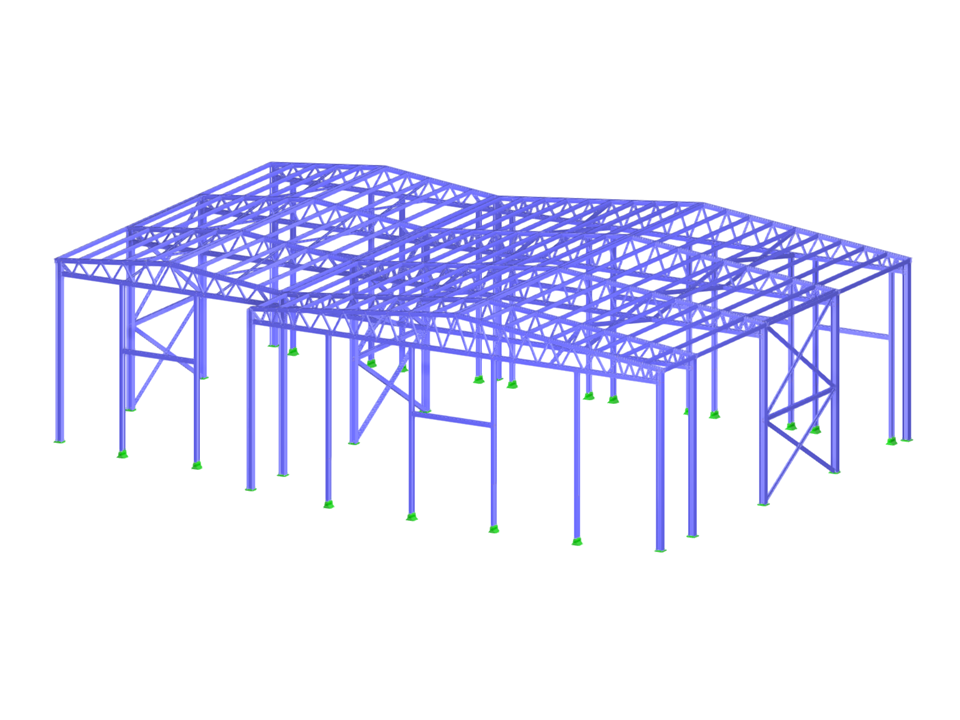

This steel-framed industrial warehouse is designed as a mechanical workshop located in the Macchiareddu industrial zone near Cagliari. It consists of pitched lattice girders and X-bracing systems, covering a total floor area of approximately 775 m² with dimensions of 34.5 m by 23.5 m.
Structural analysis and design were carried out by Profilsider SpA.
Model Used in
Industrial Steel Warehouse Structure Design
No Download Possible
Customer Project / View Only
| Number of Nodes | 502 |
| Number of Lines | 1037 |
| Number of Members | 967 |
| Number of Surfaces | 11 |
| Number of Solids | 0 |
| Number of Load Cases | 15 |
| Number of Load Combinations | 119 |
| Number of Result Combinations | 2 |
| Total Weight | 33.898 tons |
| Dimensions (Metric) | 51.489 x 9.846 x 27.908 m |
| Dimensions (Imperial) | 168.93 x 32.3 x 91.56 feet |
