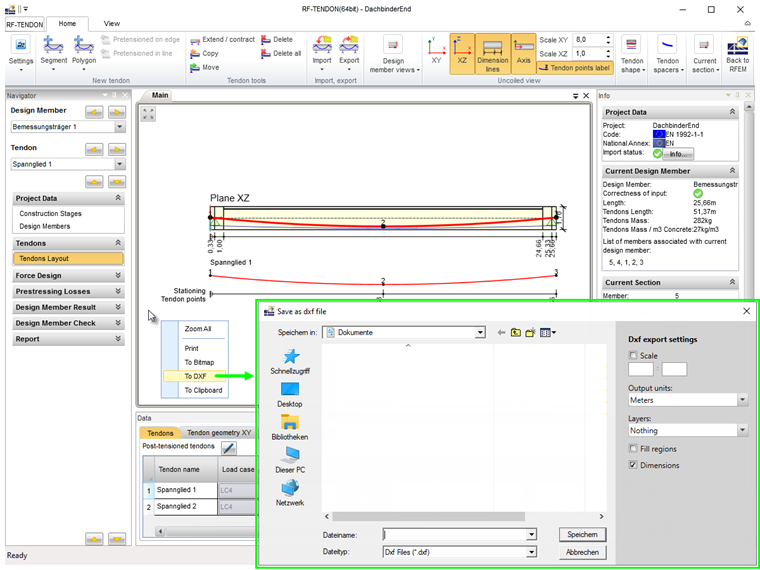

- Scale to export to
- Unit of measure to export to
- An arrangement of layers into which the graphic is divided
With the export function from the workspace, you can export not only the tendon geometry, but any of your graphics.
Knowledge Base
DXF Export
Once you have determined the final tendon geometry in RF‑TENDON, exporting the model to a CAD program can be useful. For this purpose, the module includes the option to export the file in the .dxf file format. You can select the export function by right-clicking the workspace. After selecting the DXF format and the storage location, additional settings can be made.
Knowledge Base
Author
Mr. Langhammer is responsible for development in the area of reinforced concrete structures, and provides technical support to our customers.
