Under "Colors in Rendering According to", you find the option to display the various member types in different colors. In "Display Properties", you can also change the preset colors.
Knowledge Base

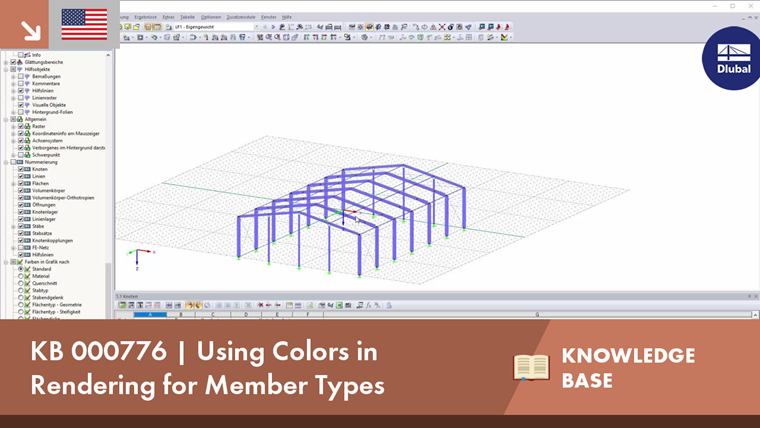

Using Colors in Rendering for Member Types
In RFEM and RSTAB, you can now also display and check the types of members used visually, by means of colors. To do this, an option has been integrated into the Display Navigator.
