Different Types of Lateral Intermediate Restrains for Single Element in RF-/STEEL EC3

在 RF-/STEEL EC3 中我需要对一个单元定义不同的侧向中间约束。 Is this possible?


回复:

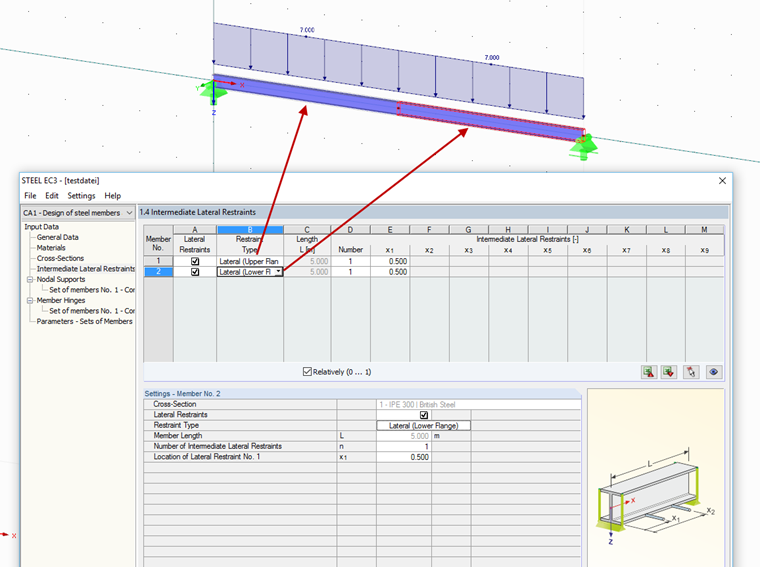

如果需要定义不同类型的侧向支撑,那么就要划分具体的杆件。 After that, you can create a set of member and with that done, you can easily define different types of intermediate supports along this set of member, or you can use different nodal supports in the nodes of the set of member.
