玻璃结构设计软件

结构有限元分析与计算

有限元软件 RFEM 是组成模块化软件系统的基础。主程序 RFEM 用于定义平面或空间的板、墙、壳和杆件结构等的结构、材料以及荷载作用。同时也可以用程序创建混合结构以及处理体单元和接触单元。

单层、组合以及中空玻璃设计

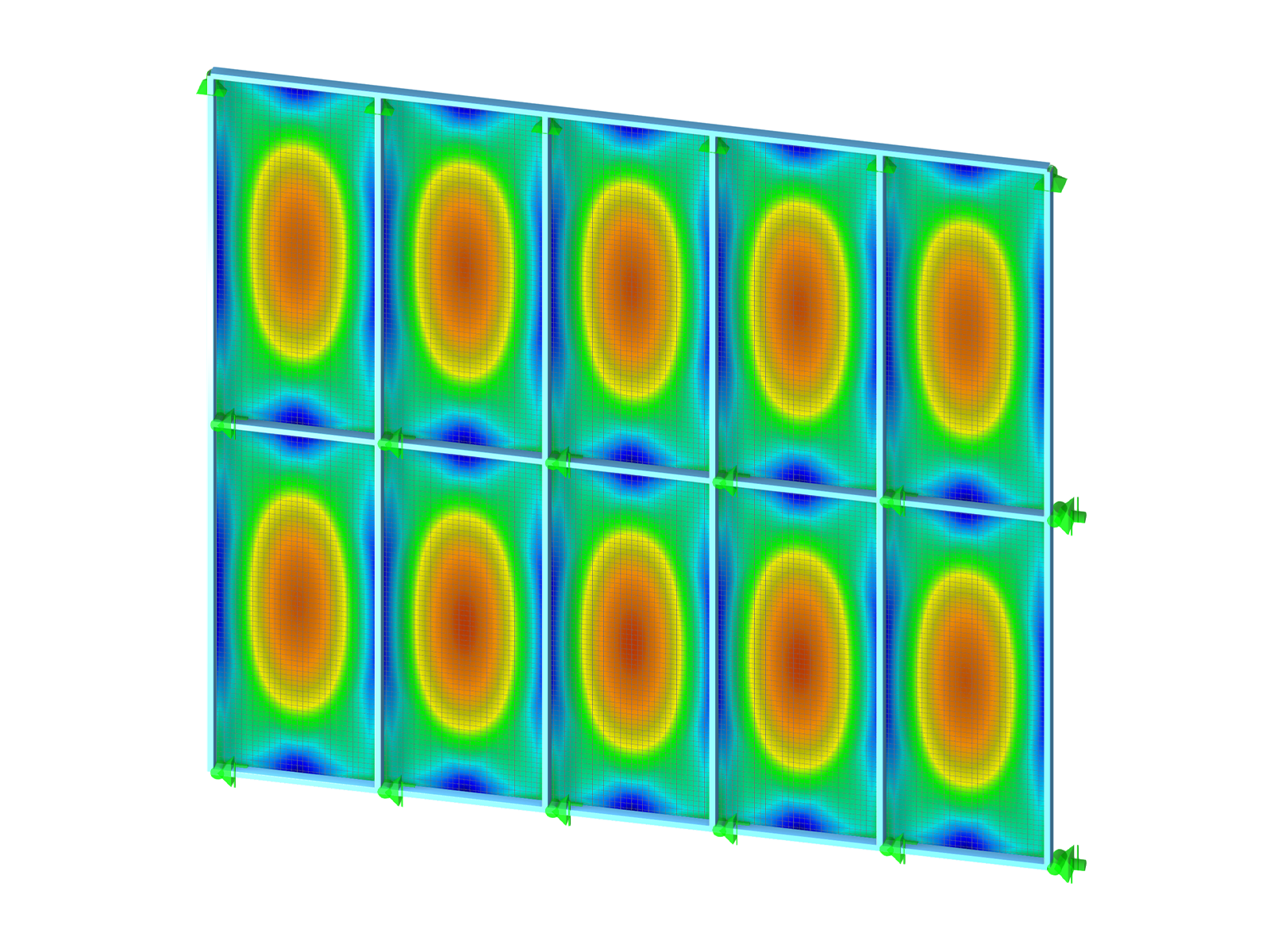

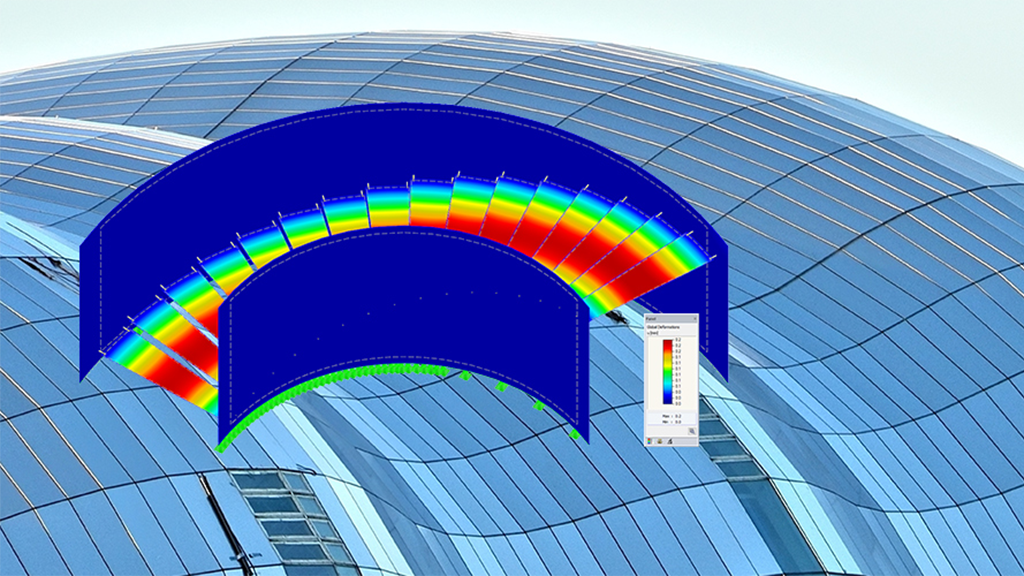

附加模块 RF-GLASS 用于计算任意形式和弯曲玻璃面的变形和应力。模块可以生成全部的玻璃类型,也就是说不仅可以创建单层玻璃, 而且可以创建组合玻璃和中空玻璃。

模块中具有了庞大的材料数据库包含了全部通用的玻璃类型、膜和气体供用户选择。并且模块中还集成了下列规范用于设计和计算:

  • DIN 18008:2010-12
  • TRLV:2006-08

专题报告 | 玻璃结构

  1. 1 - Model Including Dimensions

    Modeling of Point-Supported Glass Systems 1

    The transparency of glass material should not be missing in any building. In addition to the typical application areas such as windows, this building material is being increasingly used for facades, canopies, or even as a bracing for stairways. Of course, the planning architects often set a very high standard of transparency on fixation of the glass panes. This requires special glass fittings that couple the glass panes.

  2. 1 - Discretization in Drilling Hole Area

    Modeling of Point-Supported Glass Systems in RFEM 2

    As mentioned in Part 1 of the article, the current standard for glass structures DIN 18008-3 requires point-supported fittings for glass components created using FEM in order to design the sufficient load-bearing capacity. The rules are described in Annex B of the standard [1].

更多产品功能和技术文章

联系我们

联系 Dlubal

如果您有任何关于我们产品的问题,或者您需要选择适合自己项目的软件建议,请联系我们的技术支持或者搜索我们的常见问题和解答 (FAQs)。

+49 9673 9203 0

(可要求接中文热线)

info@dlubal.com

产品视频:附加模块 RF-GLASS

新闻简报

订阅相关新闻简讯,并获取有关实用的建议、计划举办的活动以及独家促销和优惠卷的信息。

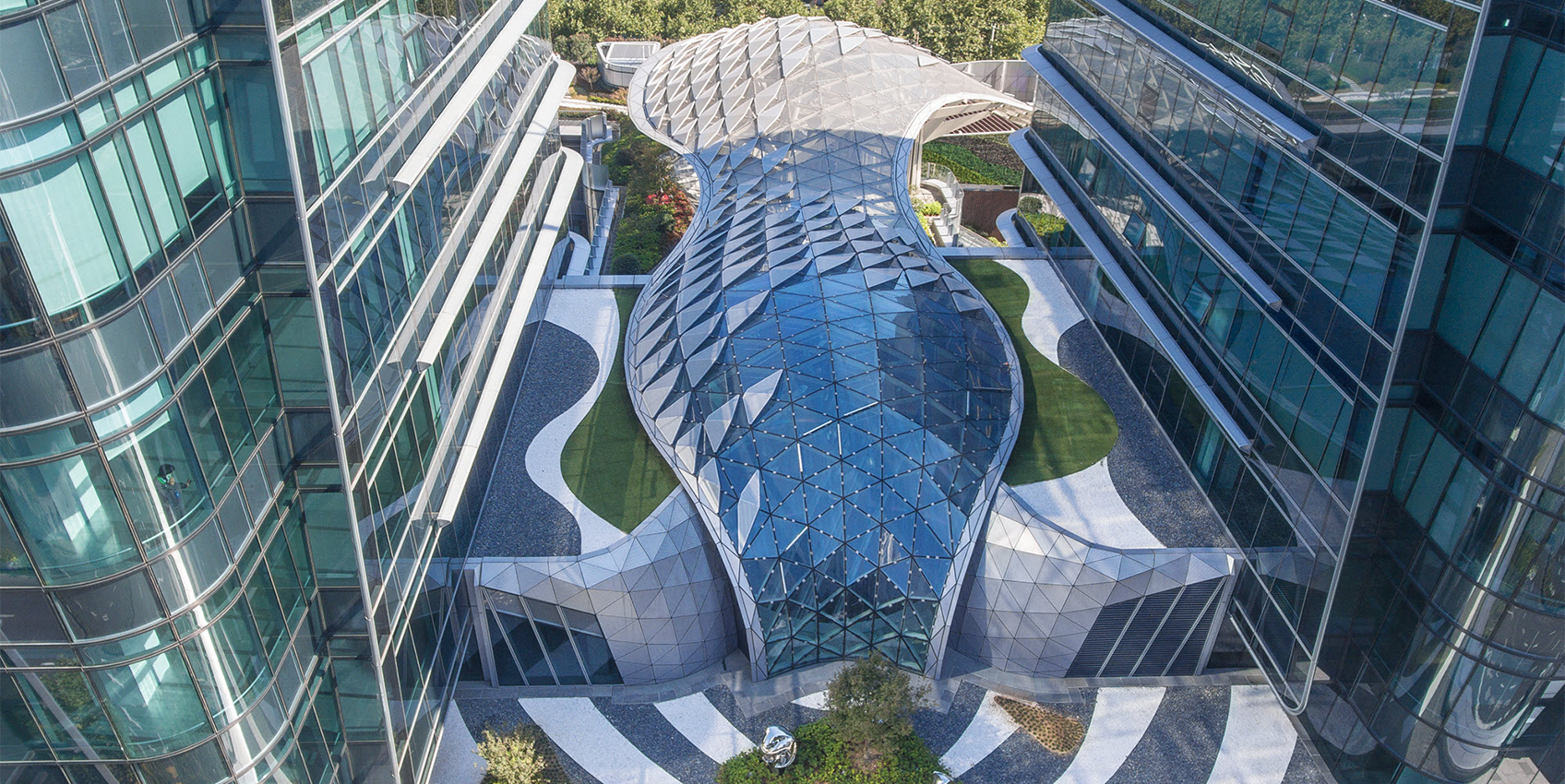

客户项目:玻璃结构
