FAQ 001050 ZH

Display settings RFEM RSTAB

I want to see maximum and minimum support forces in the representation of a load combination. What do I have to do? The program only shows maximum forces.

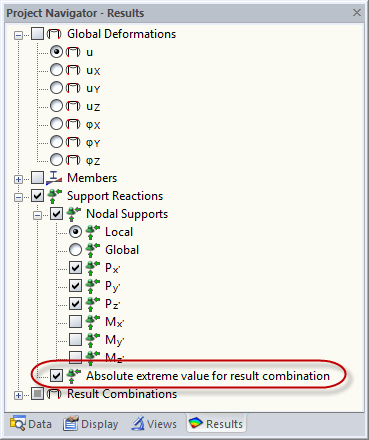

The reason why only the maximum support reactions are displayed for the result combination (RC) is the ticked check box for the "Absolute extreme value for result combination" in the Results navigator (see picture).

If you clear the check box, the program displays also the minimum support reactions in case of a selection of the Min values.
