通过 COM 接口计算特定的荷载工况、荷载组合或结果组合

如何使用带COM接口的命令只计算特定的荷载工况、荷载组合或结果组合？

回复:

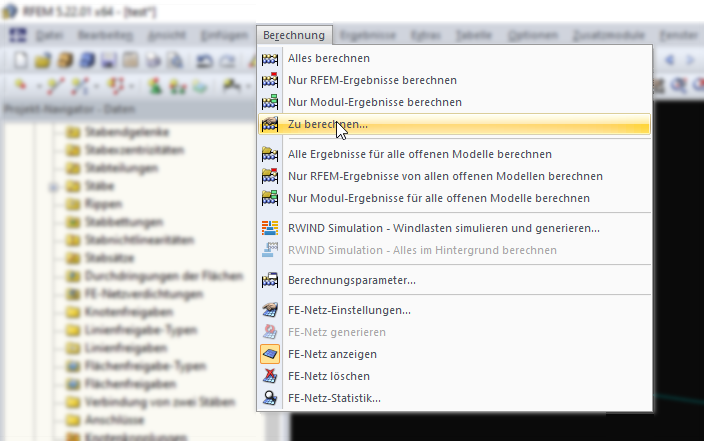

为了像命令“计算...”一样只计算特定的荷载工况、荷载组合或结果组合（见图 01），可以使用接口 ICalculation 的 CalculateBatch 方法。 Bei der Übergabe erwartet die Methode ein Feld mit der Belastung vom Typ Loading. Loading beinhaltet dabei die Nummer der Belastung und den Typ (z. B. Lastkombination):

Sub batch_test()

'   get interface from the opened model and lock the licence/program
    Dim iModel As RFEM5.IModel3
    Set iModel = GetObject(, "RFEM5.Model")
    iModel.GetApplication.LockLicense


On Error GoTo e

    '   get interface for calculation
    Dim iCalc As ICalculation2
    Set iCalc = iModel.GetCalculation

    '   create array with loading types
    Dim loadings(3) As Loading
    loadings(0).no = 1
    loadings(0).Type = LoadCaseType

    loadings(1).no = 4
    loadings(1).Type = LoadCaseType

    loadings(2).no = 4
    loadings(2).Type = LoadCombinationType

    '   calculate all loadings from the array at once
    iCalc.CalculateBatch loadings

e:  If Err.Number <> 0 Then MsgBox Err.description, , Err.Source

    Set iModelData = Nothing
    iModel.GetApplication.UnlockLicense
    Set iModel = Nothing

End Sub
