FAQ 004337 EN

7 February 2020

Thomas Günthel Calculation RFEM RSTAB RF-COM RS-COM

How can I only calculate very specific load cases, load combinations, or result combinations with the help of a command with the COM interface?

Answer

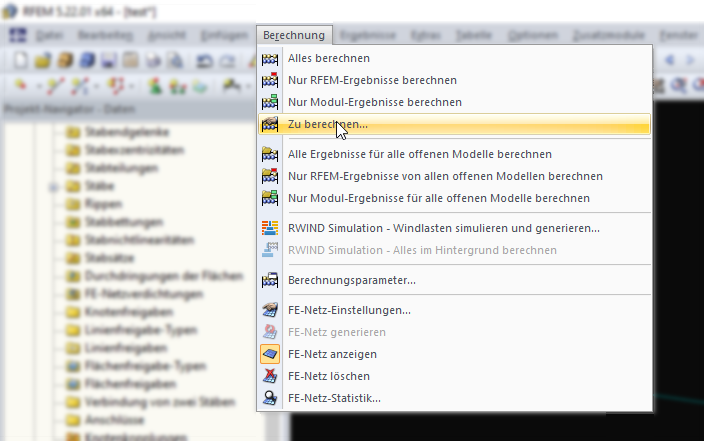

To calculate only certain load cases, load combinations, or result combinations, just like the "To Calculate ..." command (see Figure 01), you can use the CalculateBatch method of the ICalculation interface. When transferring data, the method expects a field with the loading type. Loading includes the number of the loading and the type (e.g. load combination):

Sub batch_test ()

'   get interface from the opened model and lock the licence/program
    Dim iModel As RFEM5.IModel3
    Set iModel = GetObject(, "RFEM5.Model")
    iModel.GetApplication.LockLicense


On Error GoTo e

'get interface for calculation
Dim iCalc As ICalculation2
    Set iCalc = iModel.GetCalculation

'create array with loading types
Dim loadings (3) As Loading
loadings (0) .no = 1
loadings (0) .Type = LoadCaseType

loadings (1) .no = 4
loadings (1) .Type = LoadCaseType

loadings (2) .no = 4
loadings (2) .Type = LoadCombinationType

'calculate all loadings from the array at once
iCalc.CalculateBatch loadings

e: If Err.Number <> 0 Then MsgBox Err.description,, Err.Source

    Set iModelData = Nothing
    iModel.GetApplication.UnlockLicense
    Set iModel = Nothing

End Sub

Keywords

Batch To Solve COM Load combination Result combination Load case
