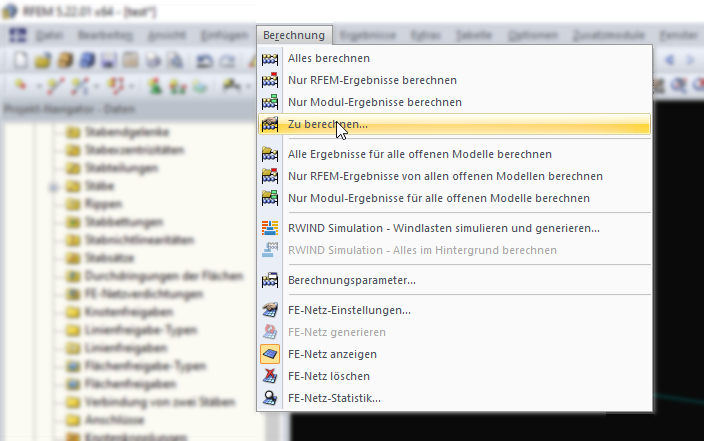

Um nur bestimmte Lastfälle, Lastkombinationen oder Ergebniskombinationen zu berechnen, genau wie der Befehl "Zu berechnen..." (siehe Abbildung 01), kann die Methode CalculateBatch der Schnittstelle ICalculation verwendet werden. Bei der Übergabe erwartet die Methode ein Feld mit der Belastung vom Typ Loading. Loading beinhaltet dabei die Nummer der Belastung und den Typ (z. B. Lastkombination):
Sub batch_test() ' get interface from the opened model and lock the licence/program Dim iModel As RFEM5.IModel3 Set iModel = GetObject(, "RFEM5.Model") iModel.GetApplication.LockLicense
On Error GoTo e ' get interface for calculation Dim iCalc As ICalculation2 Set iCalc = iModel.GetCalculation ' create array with loading types Dim loadings(3) As Loading loadings(0).no = 1 loadings(0).Type = LoadCaseType loadings(1).no = 4 loadings(1).Type = LoadCaseType loadings(2).no = 4 loadings(2).Type = LoadCombinationType ' calculate all loadings from the array at once iCalc.CalculateBatch loadings
e: If Err.Number <> 0 Then MsgBox Err.description, , Err.Source Set iModelData = Nothing iModel.GetApplication.UnlockLicense Set iModel = Nothing
End Sub
