AISC 341 极限状态类型

哪些极限状态类型适用于 AISC 341 抗震设计?


回复:

抗震极限状态选项(有和没有超强)只为分配了抗震设计配置的杆件提供结果。

The Strength Limit State is used to design all members, including the members that are not part of the seismic force-resisting system (SFRS). Therefore, both Earthquake and Strength Limit States are required.

The Serviceability Limit State is also available.

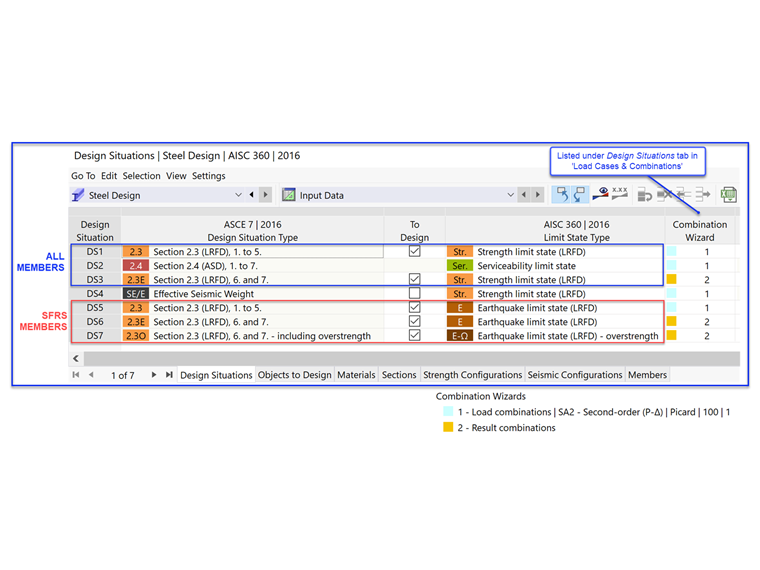

Image 01 is an example of the required design situations for the LRFD Design.

计算说明

  1. The web ductility check per <nobr>Table D1.1</nobr> of <nobr>AISC 341-16</nobr> (RFEM EQ 1100) is applicable to all load combinations, including non-seismic COs. Therefore, the Earthquake Limit State is also applied to Equations 1 to 5 (Design Situation DS5 in Image 01).
  1. For the Combination Wizard, the “Result Combinations” is required when using the response spectrum analysis.
