FAQ 001442 ZH

打印报告 RFEM RSTAB

We changed the company address in the printout report. Now, if I select "Directly to a Printer," the old address reappears. How can I change the corporate address here?

回答

For the graphic printout, you can define the company address as follows:

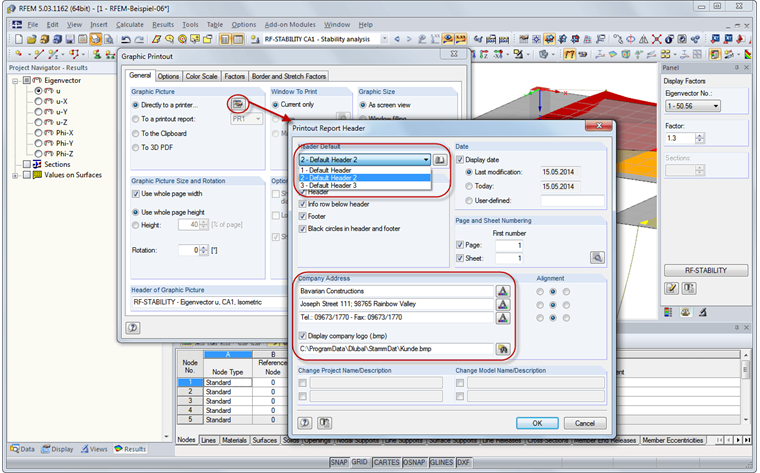

Click in the "Graphic Printout" dialog box on "Directly to a Printer," and then click [Edit Printout] button.

A window opens, where you can decide which company address is used for the printout report. Please check this in the lower part. Here, you have to select the new company name.

Alternatively, you can just define a new header and set it as default.
