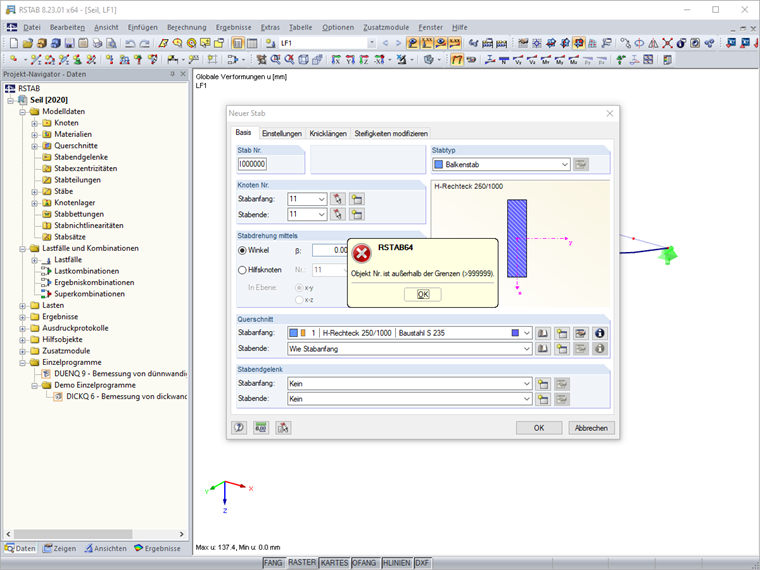

Where are the limits for RSTAB concerning the number of structural elements?
The analysis core of the RSTAB program family has currently the following upper limits:
- 999,999 model data (objects of each category, that is nodes, members, etc.)
- 999,999 load data (objects of each load type per load case)
- 9,999 load cases
- 9,999 load combinations
- 9,999 result combinations
- 9,999 super combinations
