通过 COM 接口传递有效长度的系数

如何使用COM接口传递杆件的有效长度？

回复:

有效长度的系数通过杆件接口 SetEffectiveLengths() 传输。 Mit GetEffectiveLengths() kann man die Daten auslesen:

// get interface to running RFEM application.
iApp = Marshal.GetActiveObject("RFEM5.Application") as IApplication;
iApp.LockLicense();

// get interface to active RFEM model.
iModel = iApp.GetActiveModel();

// get interface to model data.
IModelData2 iModData = iModel.GetModelData() as IModelData2;

// get interface to member 1
IMember iMem = iModData.GetMember(1, ItemAt.AtNo);

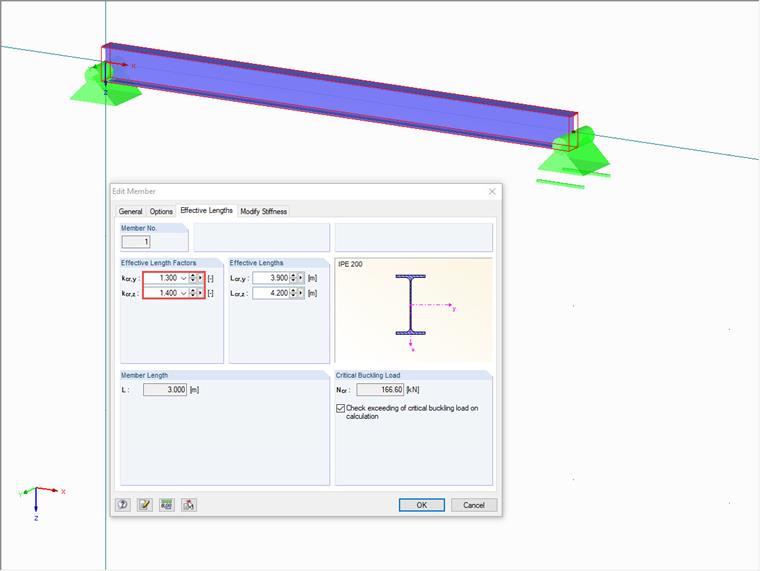

MemberEffectiveLengths memEffLen = iMem.GetEffectiveLengths();

memEffLen.No = 1;
memEffLen.CheckBucklingLoad = true;
memEffLen.Enabled = true;
memEffLen.FactorU = 1.1;
memEffLen.FactorV = 1.2;
memEffLen.FactorY = 1.3;
memEffLen.FactorZ = 1.4;

// set new effective lengths data
iModData.PrepareModification();
iMem.SetEffectiveLengths(memEffLen);
iModData.FinishModification();

Zu beachten ist, dass die Eigenschaften für die effektiven Längen (z. B. EffectiveLengthY) der Struktur MemberEffectiveLengths sowie die Eigenschaft CriticalBucklingLoad nur gelesen werden können.
