FAQ 002009 ZH

打印报告 RFEM RSTAB 5.xx 8.xx

Is it possible to subsequently change a picture added to the printout report?

回答

Yes, it is possible. For this, right-click the picture and select "Edit". The main program appears where you can change views and display or hide model data, for example. Modifications are trasferred to the printout report directly.

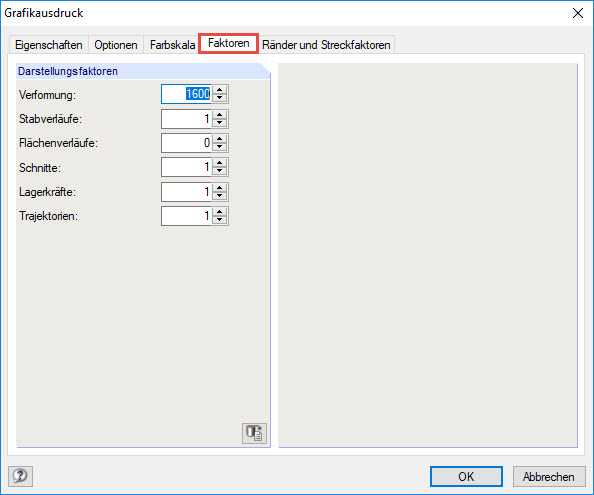

If you want to change the size of member diagrams or adjust deformations, select "Properties" and click the "Factors" tab in the following dialog box where you can also find other options for the graphic adjustment.

The size of load figures or fonts can be adjusted in the display properties. However, these settings are global for all graphics.

关键词

printout report, graphics
