RFEM 中手动定义支座和有效长度

有没有一种方法可以在不手动设置中间支座的情况下准备EC3屈曲验算,或者有没有可以加快此速度的解决方法?


回复:

很遗憾,不是。 Intermediate supports and nodal supports have to be set manually. The default configuration for effective lengths is 1,0*member length and for a set of members, one nodal support with the definition of u_y' and phi_x' on each side of the set of member.

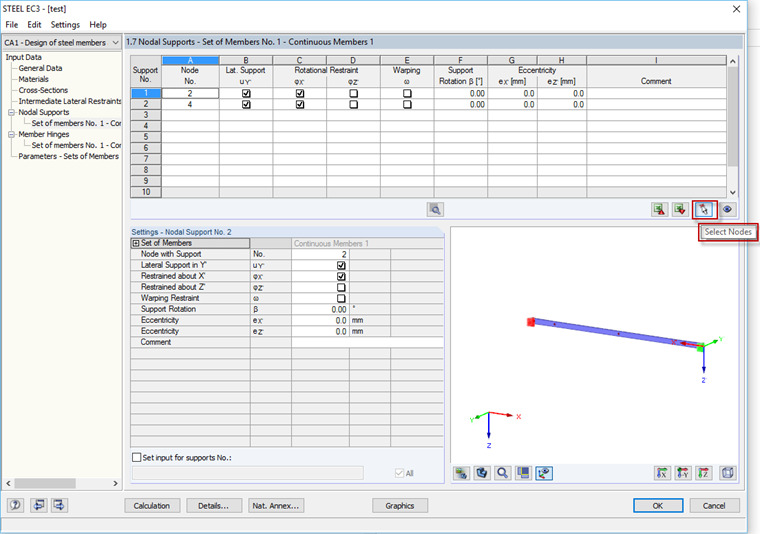

To speed up the process of defining nodal supports, you can pick more nodes in one step by using the highlighted function in the attached image.



;
