错误 1136

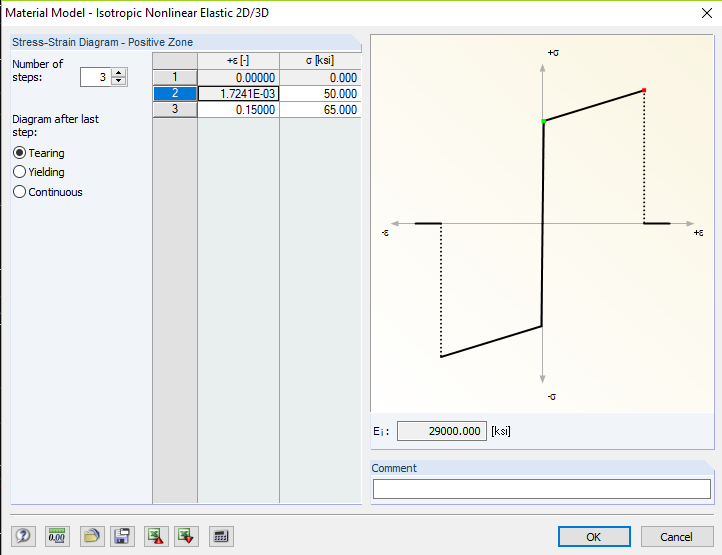

"在计算材料非线性时,图表中有递减分支的材料,可以只用一个荷载增量进行计算。"为什么会出现此错误?


回复:

当定义复杂的非线性材料模型时,只能使用默认设置,即 1 倍荷载增量。 The reason for this is because the program cannot determine the correct material stiffness for each incremental loading amount. The exact maximum load needs to be applied to the structure in order to determine the state of the material's stress/strain diagram.

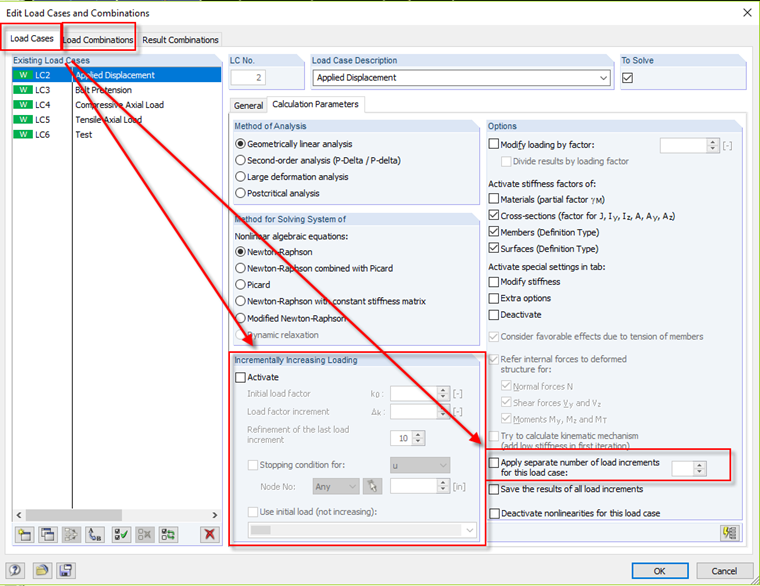

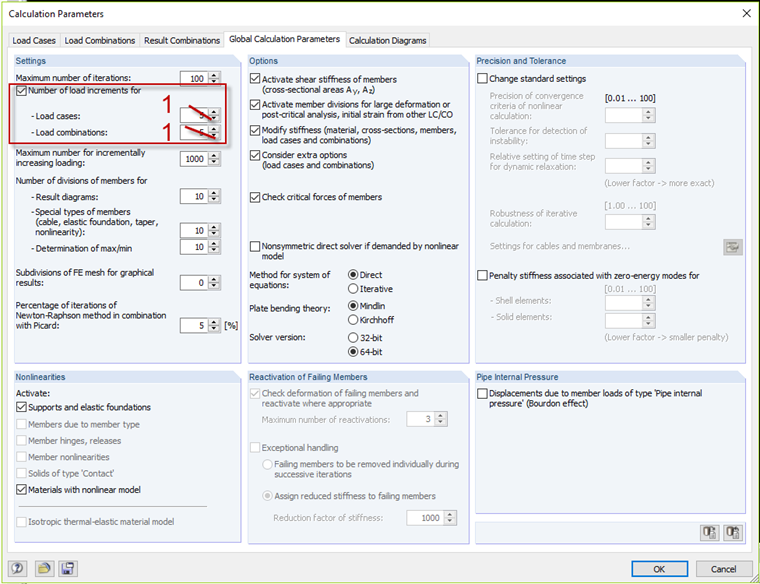

This setting can be found and changed under "Calculation Parameters" as well as under the "Calculation Parameters" in the load cases and combinations dialog box.
