RWIND Simulation 中考虑阵风影响

是ASCE 7-16部分中的阵风作用(G或Gf )。 26.11 在 RWIND Simulation 中考虑?


回复:

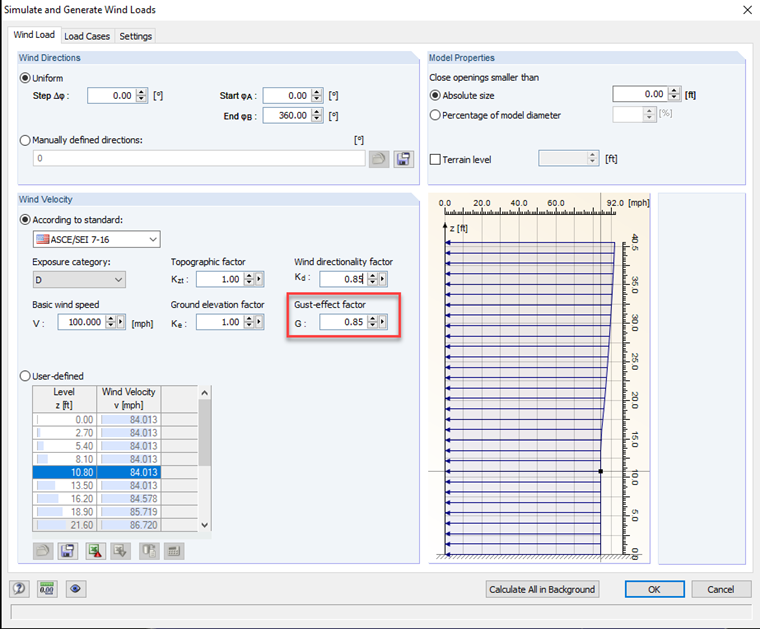

是的,可在 RWIND Simulation 中调整阵风系数 G 或 Gf 。 This value can be changed within the "Wind load" tab under "Wind velocity."

In the ASCE 7-16, the conservative value for the Gust-factor, G, is 0.85 for rigid buildings. The engineer can calculate an alternative and more accurate value. The Gust-effect, Gf, for flexible buildings accounts for size and gust size similar to rigid buildings, but also considers dynamic amplification including wind speed, natural frequency, and damping ratio.
