问题：

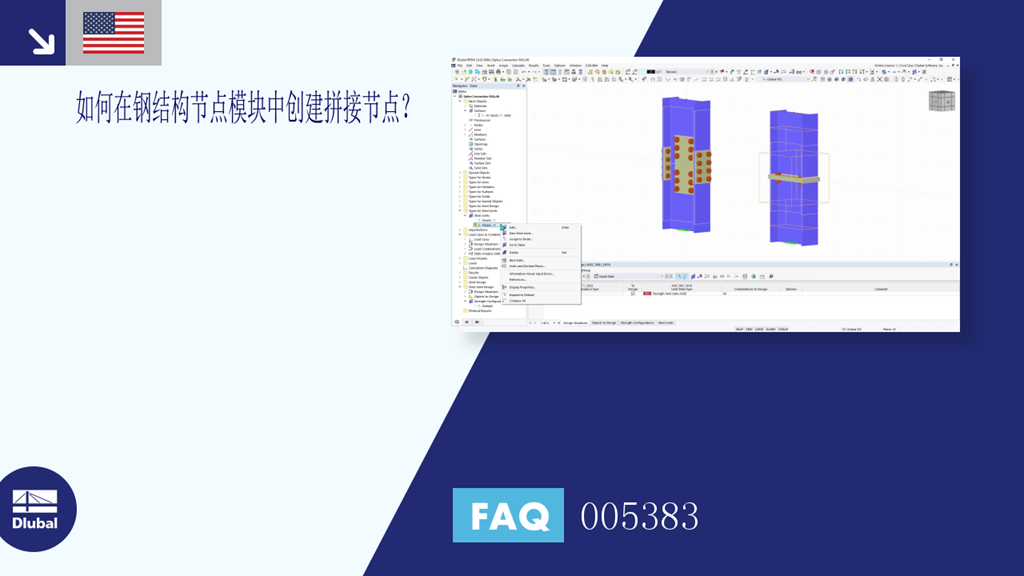

How do I create a splice connection in the Steel Joint Add-on?
答案：
使用端板的对接连接可以使用从'组件'库中的“板到板”轻松创建（图01）。
For a splice joint without end plates, the configuration can be created manually by adding individual components (Image 02).
The configuration includes the following components. Each component can be easily deleted or copied by right-clicking on the component.
- Plates (2 outer flange plates, 4 inner flange plates, 2 web plates)
- Fasteners (4 sets to connect 4 inner flange plates, 1 set to connect web plate)
- Auxiliary Plane (2 planes)
- Member Cut (2 cuts) with the type of cut ‘By auxiliary plane’)
It is required that a small gap is created using “Member Cut” and “Auxiliary Plane”. The gap is divided between the two members (i.e., 1/16” gap is applied as 1/32” displacement to each member).
Alternatively, a sample model “AISC Splice Connection” can be downloaded and saved as a user-defined template (Image 03).
