FAQ 000248 ZH

输入 / 输出 & BIM RF-CONCRETE RFEM

Is it possible to export the design results of RF-CONCRETE Surfaces to a program used for the layout of welded wire meshes?

回答

Yes, the export to various reinforcement CAD programs is possible.

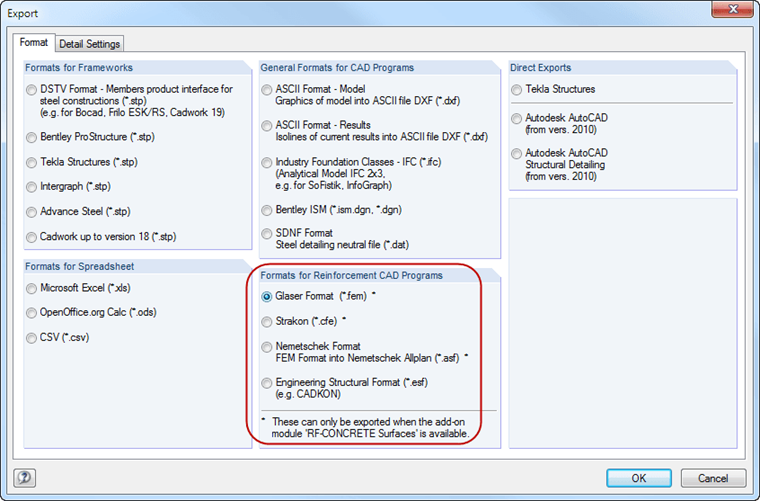

You can access the export function in RFEM and transfer data to the following programs:

  • Glaser format (*.fem)
  • Strakon (*.cfe)
  • Nemetschek format (*.asf)
  • Engineering Structural Format (*.esf)

Results from RF-CONCRETE Surfaces, if they are displayed as well in RFEM, can be exported to these formats.

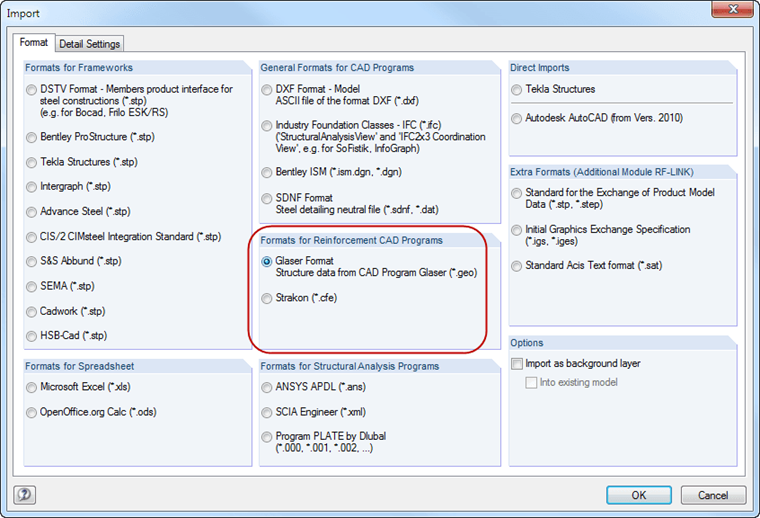

A function for importing structural details and loadings is also possible in RFEM for the following programs:

  • Glaser format (*.fem)
  • Strakon (*.cfe)
